Product Description
RX98L-02 4 US26 LHR Von Duprin Request to Exit (RX) 98 Series Lever Rim Exit Device Bright Chrome
The RX98L-02 4 US26 LHR is a Von Duprin 98 Series rim exit device with L-02 Lever trim in Bright Chrome (US26/625), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | RX98L-02 4 US26 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Classroom |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Chrome (US26/625) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-02 Lever trim — pull operation from outside
- Bright Chrome finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated

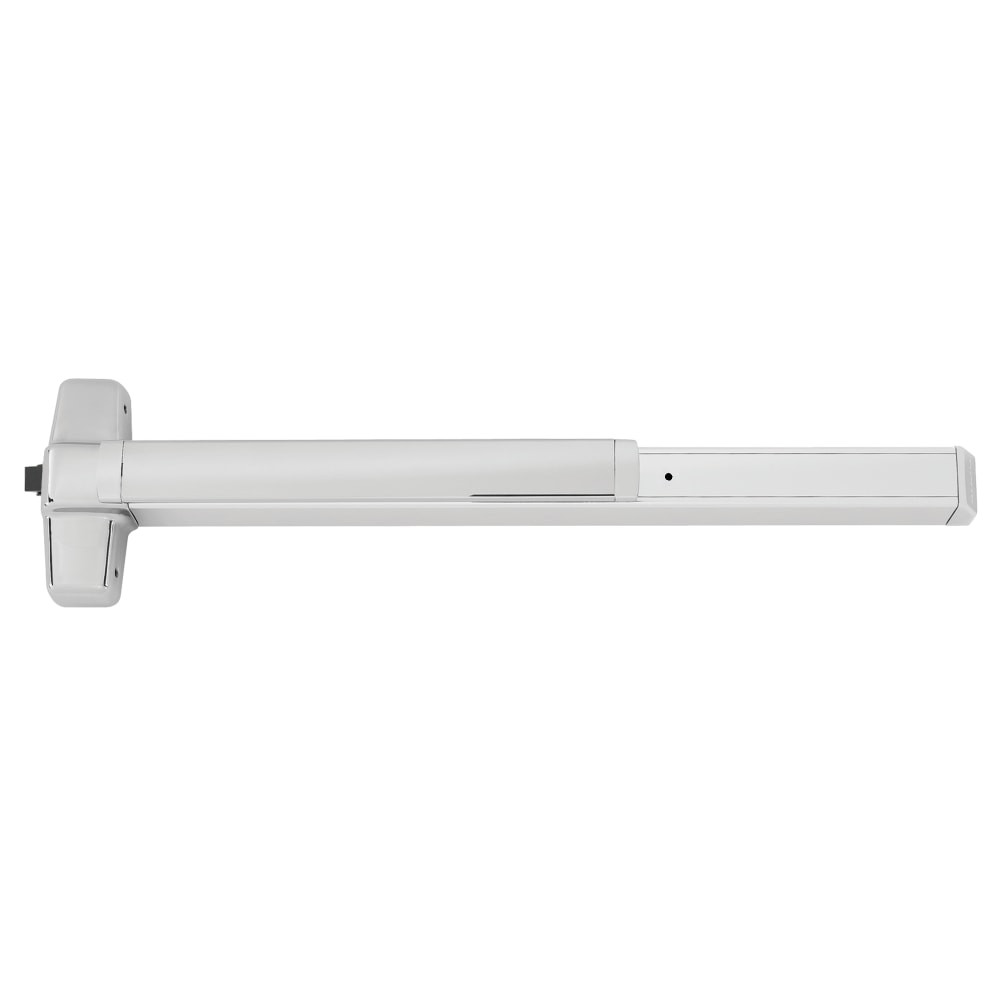

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
