Product Description
RX98L-BE-02 4 US26 RHR Von Duprin Request to Exit (RX) 98 Series Lever SFIC Prep Rim Exit Device Bright Chrome
The RX98L-BE-02 4 US26 RHR is a Von Duprin 98 Series rim exit device with L-02 Lever trim in Bright Chrome (US26/625), sized for 4' doors. SFIC Prep — prepped for Small Format Interchangeable Core. Order SFIC housing and core separately to match your keyway. Prepped for SFIC — order SFIC housing and core separately to match your keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | RX98L-BE-02 4 US26 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | SFIC Prep |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Chrome (US26/625) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Prepped for SFIC |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-02 Lever trim — pull operation from outside
- Bright Chrome finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated

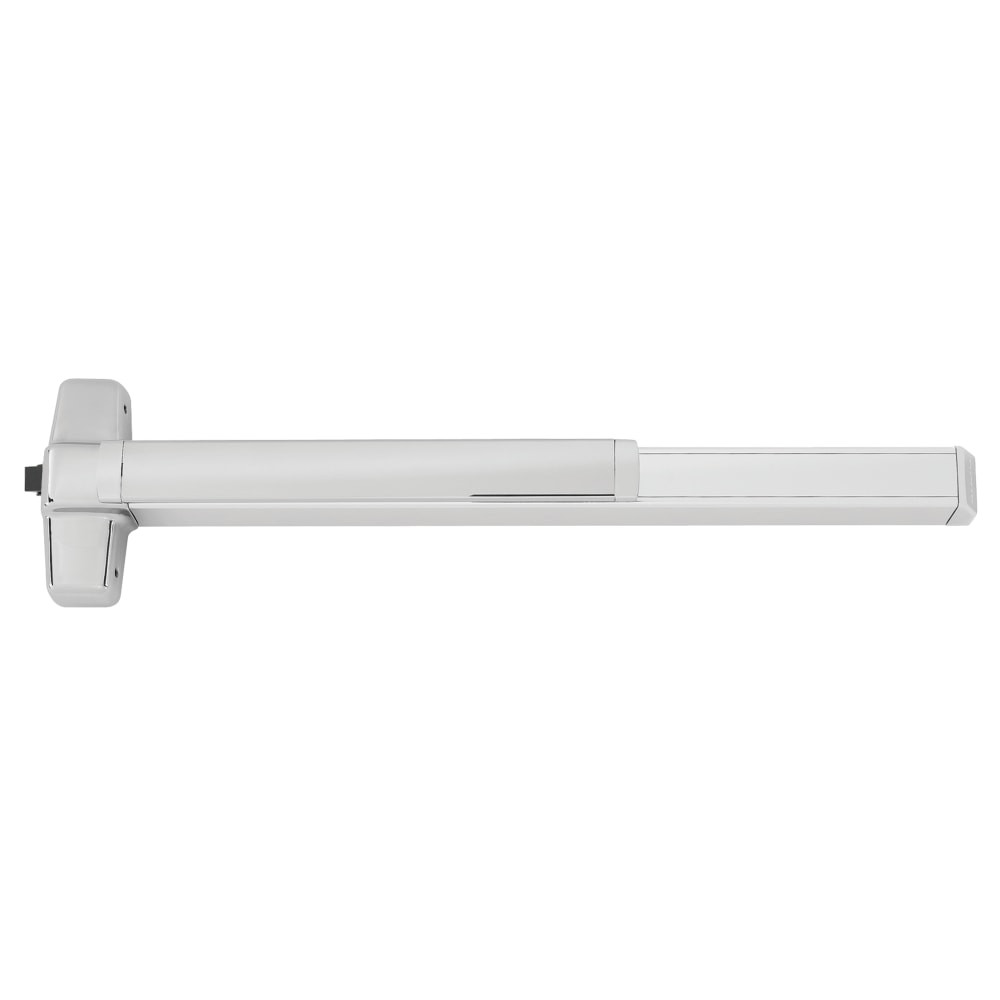

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
