Product Description
RX98L-NL-01 3 US26 RHR Von Duprin 98 Series Night Latch Rim Exit Device in Polished Chrome
The RX98L-NL-01 3 US26 RHR is a Von Duprin 98 Series rim exit device with L-01 Lever trim in Polished Chrome, sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | RX98L-NL-01 3 US26 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Night Latch |
| Lever Design | L-01 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Polished Chrome |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-01 Lever trim — pull operation from outside
- Polished Chrome finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

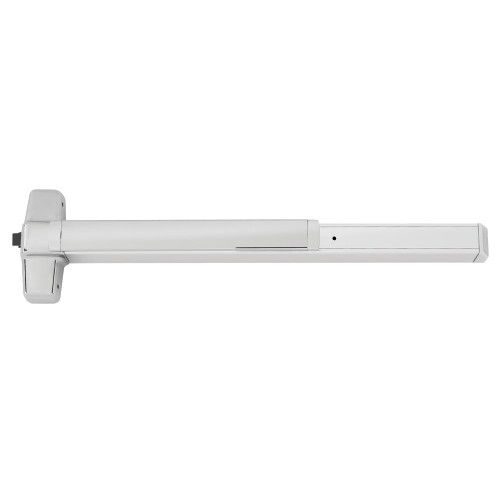

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
