Product Description
RX98L-NL-17-F 4 US26 RHR Von Duprin 98 Series Night Latch Fire Rated Rim Exit Device in Polished Chrome
The RX98L-NL-17-F 4 US26 RHR is a Von Duprin 98 Series rim exit device with L-17 Lever trim in Polished Chrome, sized for 4' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Hex key dogging is standard on non-fire-rated 98 rim devices. That means you can hold the latch retracted during business hours so the door operates as a push/pull. Fire-rated models delete dogging per UL code — if the customer needs doors to stay open on a fire-rated opening, budget for mag holders tied to the fire alarm.
| Specifications | |
|---|---|
| Part Number | RX98L-NL-17-F 4 US26 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Night Latch |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Polished Chrome |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-17 Lever trim — pull operation from outside
- Polished Chrome finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

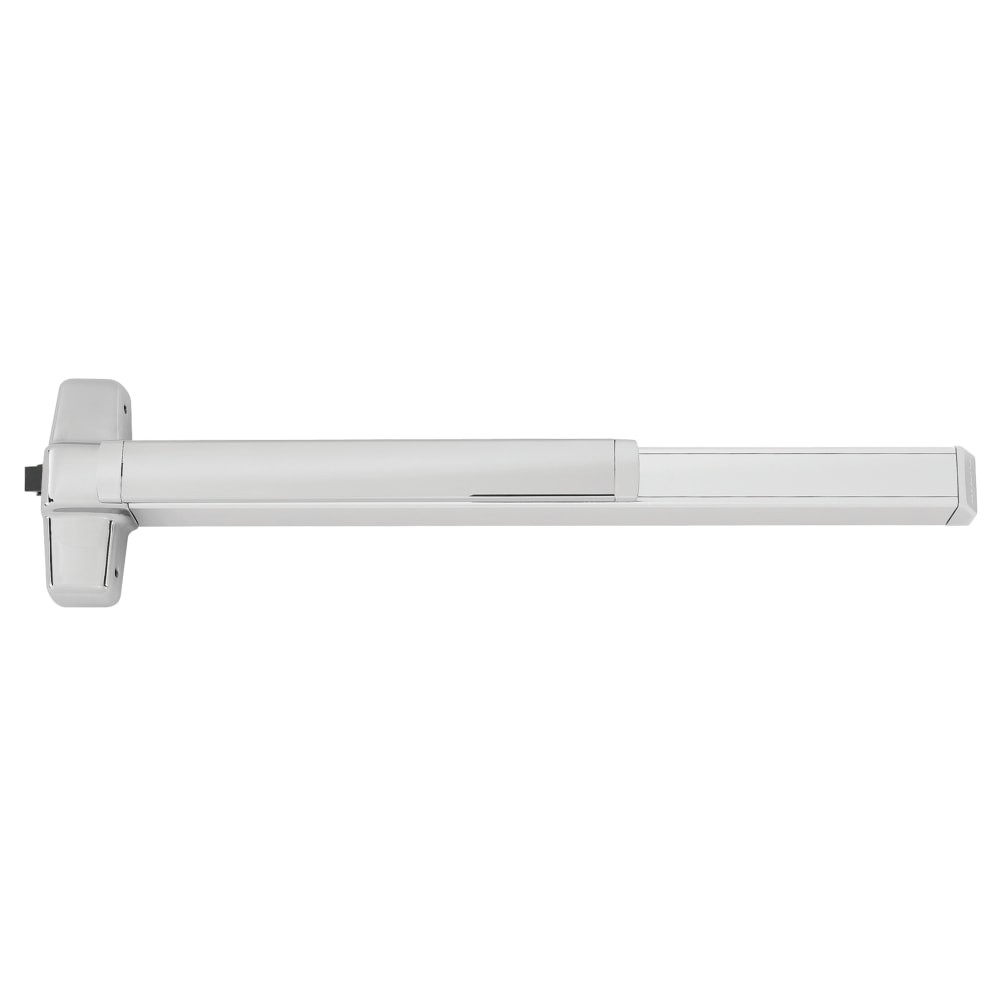

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
