Product Description

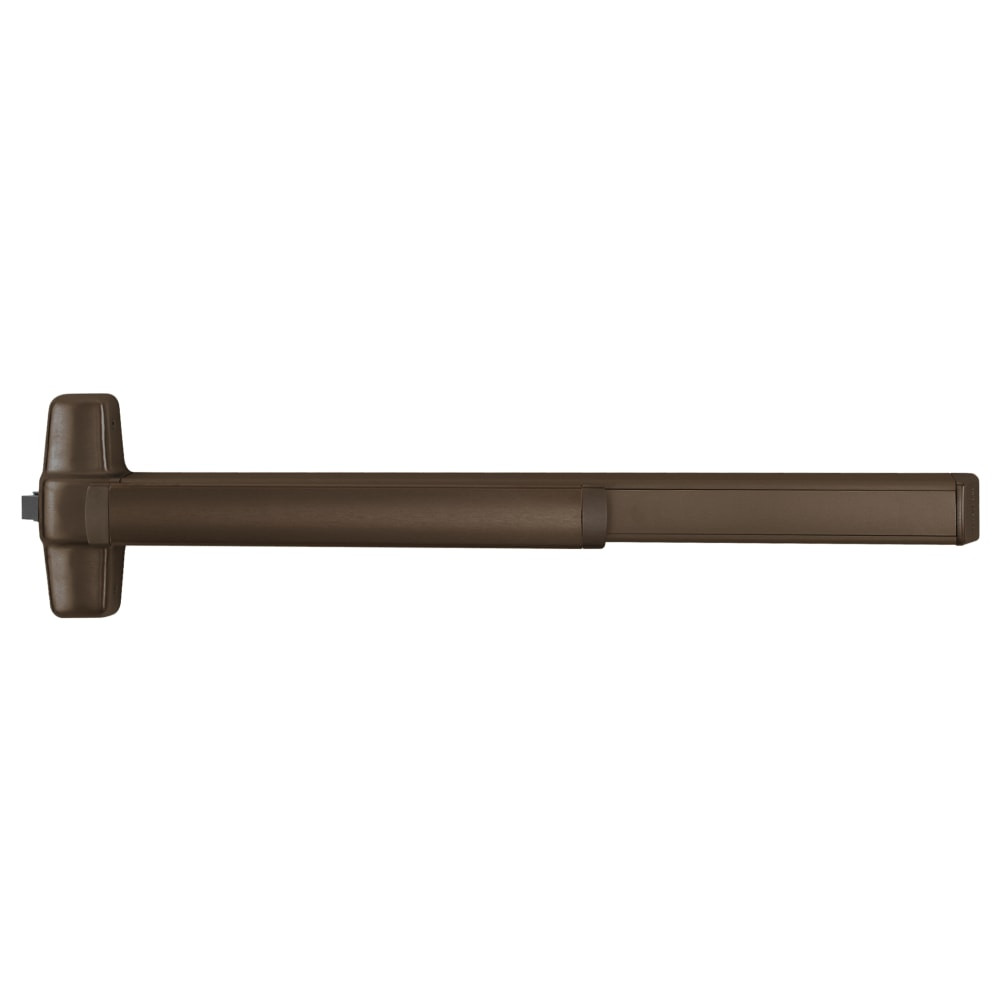

RX98TP-BE 4 313 Von Duprin Request to Exit (RX) 98 Series Thumbpiece SFIC Prep Rim Exit Device Dark Bronze
The RX98TP-BE 4 313 is a Von Duprin 98 Series rim exit device in Dark Bronze (313/313), sized for 4' doors. SFIC Prep — prepped for Small Format Interchangeable Core. Order SFIC housing and core separately to match your keyway. Prepped for SFIC — order SFIC housing and core separately to match your keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Hex key dogging is standard on non-fire-rated 98 rim devices. That means you can hold the latch retracted during business hours so the door operates as a push/pull. Fire-rated models delete dogging per UL code — if the customer needs doors to stay open on a fire-rated opening, budget for mag holders tied to the fire alarm.
| Specifications | |
|---|---|
| Part Number | RX98TP-BE 4 313 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | SFIC Prep |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Dark Bronze (313/313) |
| Door Size | 4 Foot |
| Cylinder | Prepped for SFIC |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Dark Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
- Hex key dogging standard — hold latch retracted during business hours
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
