Product Description
RX9927L-12 4 US3 RHR Von Duprin 99 Series Classroom Surface Vertical Rod Exit Device in Bright Brass
The RX9927L-12 4 US3 RHR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-12 Lever trim in Bright Brass (US3/605), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Surface vertical rod devices (9927) have rods visible on the door surface running to top and bottom bolts. When measuring for replacement, check rod length — 3' and 4' doors need different rod kits. Also verify header and threshold strike condition before quoting.
| Specifications | |
|---|---|
| Part Number | RX9927L-12 4 US3 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Classroom |
| Lever Design | L-12 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Bright Brass (US3/605) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-12 Lever trim — pull operation from outside
- Bright Brass finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

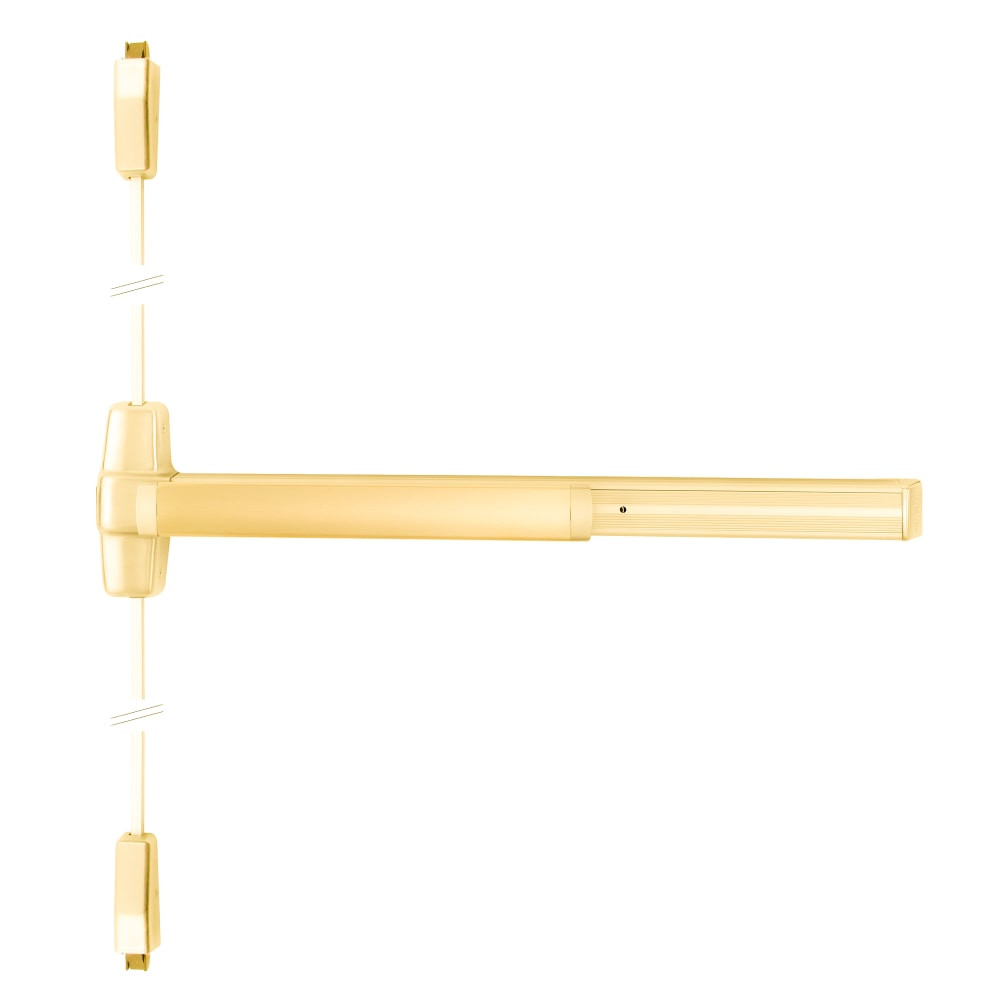

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
