Product Description

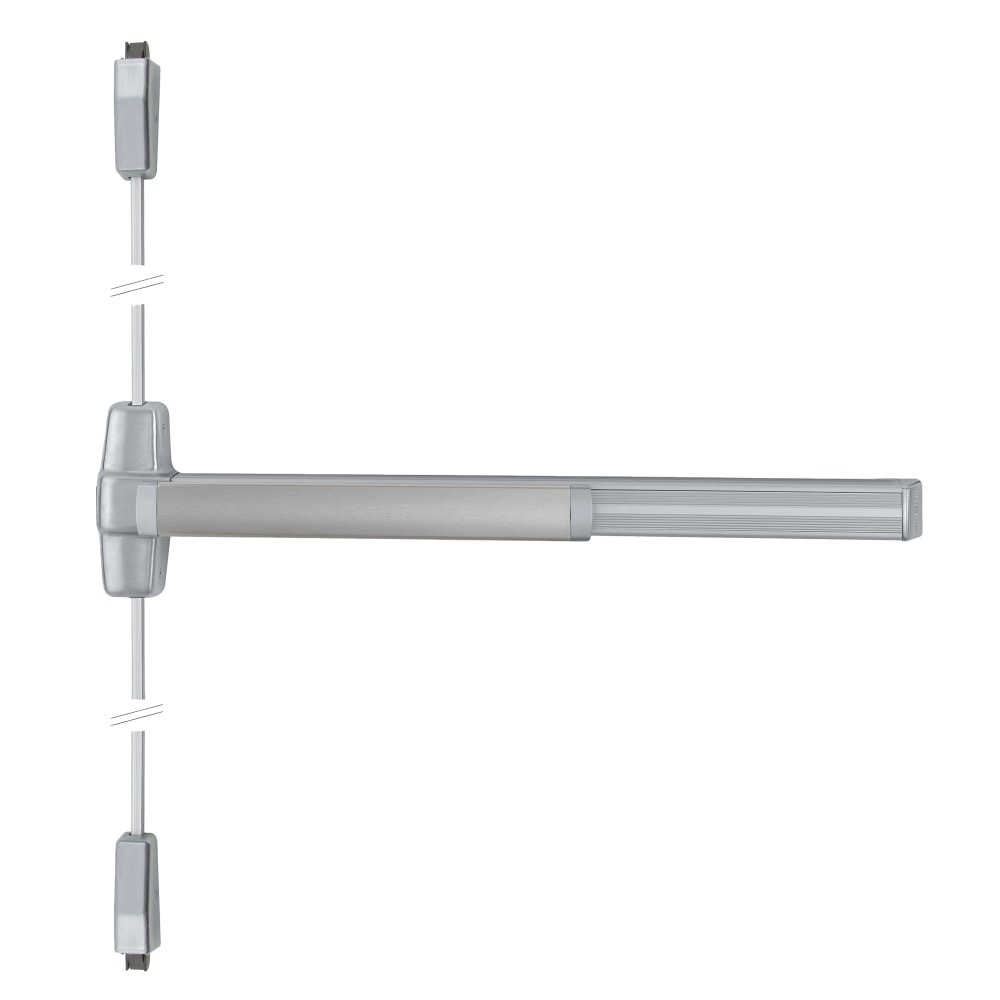

RX9927L-DT-03-F 4 US28 LHR Von Duprin 99 Series Dummy Trim Fire Rated Surface Vertical Rod Exit Device in Anodized Aluminum
The RX9927L-DT-03-F 4 US28 LHR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-03 Lever trim in Anodized Aluminum (US28/628), sized for 4' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Surface vertical rod devices (9927) have rods visible on the door surface running to top and bottom bolts. When measuring for replacement, check rod length — 3' and 4' doors need different rod kits. Also verify header and threshold strike condition before quoting.
| Specifications | |
|---|---|
| Part Number | RX9927L-DT-03-F 4 US28 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Dummy Trim |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-03 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
