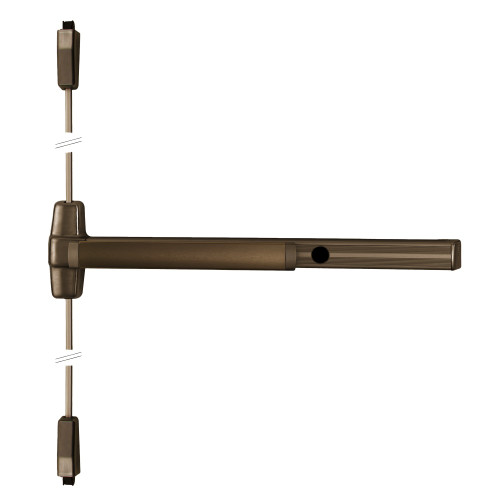

RX9927L-DT-06 3 313 RHR Von Duprin 99 Series Dummy Trim Surface Vertical Rod Exit Device in Duranodic Dark Bronze
The RX9927L-DT-06 3 313 RHR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-06 Lever trim in Duranodic Dark Bronze (313/313), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 9927 surface vertical rod device is the go-to for double-door applications where you need top and bottom latching. On pairs, you'll typically have a 9927 on the active leaf and a mullion or coordinator on the inactive side. Always spec the coordinator if both doors are operable.
| Specifications | |
|---|---|
| Part Number | RX9927L-DT-06 3 313 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Dummy Trim |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-06 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
