Product Description
RX9927L-DT-16 3 313 LHR Von Duprin 99 Series Dummy Trim Surface Vertical Rod Exit Device in Duranodic Dark Bronze
The RX9927L-DT-16 3 313 LHR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-16 Lever trim in Duranodic Dark Bronze (313/313), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9927 surface vertical rod device is the go-to for double-door applications where you need top and bottom latching. On pairs, you'll typically have a 9927 on the active leaf and a mullion or coordinator on the inactive side. Always spec the coordinator if both doors are operable.
| Specifications | |
|---|---|
| Part Number | RX9927L-DT-16 3 313 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Dummy Trim |
| Lever Design | L-16 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-16 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated

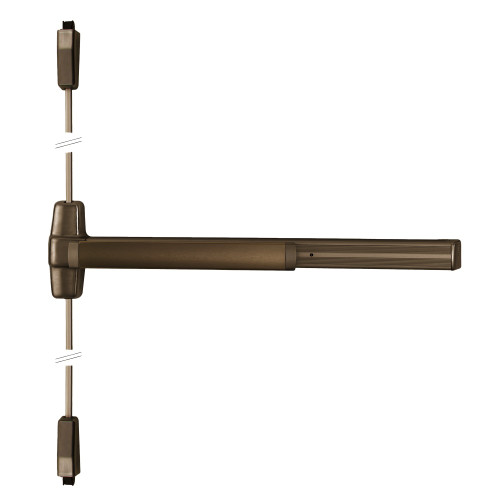

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
