Product Description
RX9927L-NL-03 4 313 LHR Von Duprin 99 Series Night Latch Surface Vertical Rod Exit Device in Duranodic Dark Bronze
The RX9927L-NL-03 4 313 LHR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-03 Lever trim in Duranodic Dark Bronze (313/313), sized for 4' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Surface rods take more abuse than concealed rods because they're exposed. On high-traffic openings, check rod guides and bottom bolt alignment on every service call. A loose rod guide is the #1 cause of 9927 field failures — five-minute fix that prevents a callback.
| Specifications | |
|---|---|
| Part Number | RX9927L-NL-03 4 313 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Night Latch |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-03 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated

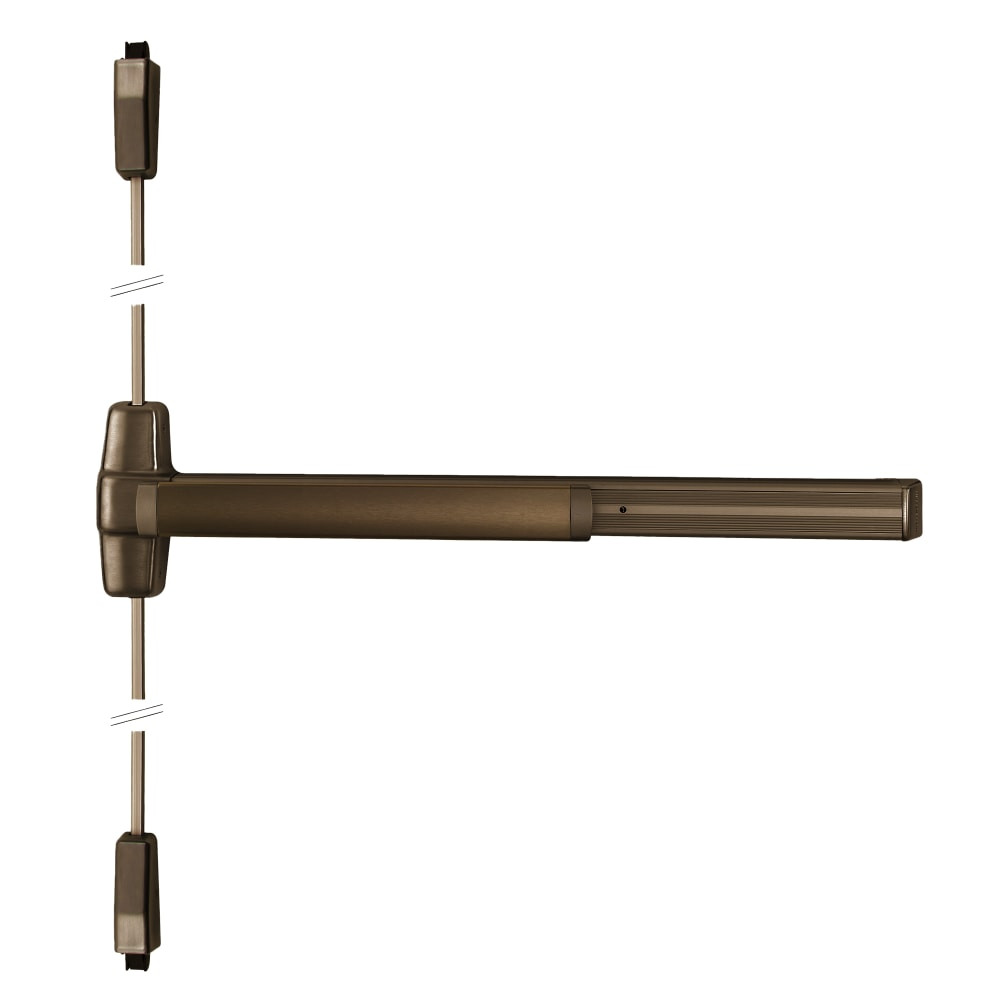

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
