Product Description

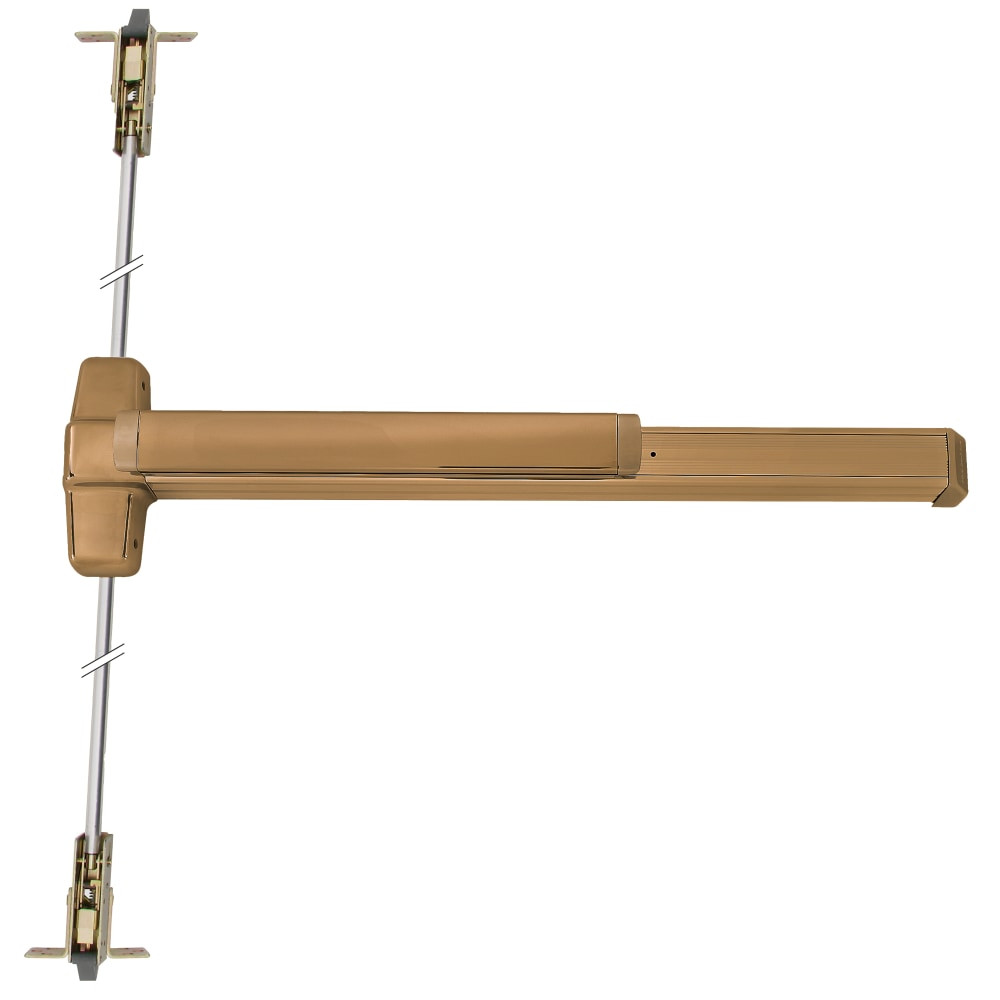

RX9947L-05 4 US10 LHR Von Duprin 99 Series Classroom Concealed Vertical Rod Exit Device in Satin Bronze
The RX9947L-05 4 US10 LHR is a Von Duprin 9947 Series Concealed Vertical Rod exit device with L-05 Lever trim in Satin Bronze (US10/612), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Concealed vertical rod devices (9947/9947WDC) hide the rods inside the door — cleaner look than surface rods. Trade-off: you need a prepped door with internal routing. On retrofit jobs, verify the door has CVR prep before quoting. If it doesn't, you're looking at field prep or a door swap.
| Specifications | |
|---|---|
| Part Number | RX9947L-05 4 US10 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Classroom |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Bronze (US10/612) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-05 Lever trim — pull operation from outside
- Satin Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
