Product Description

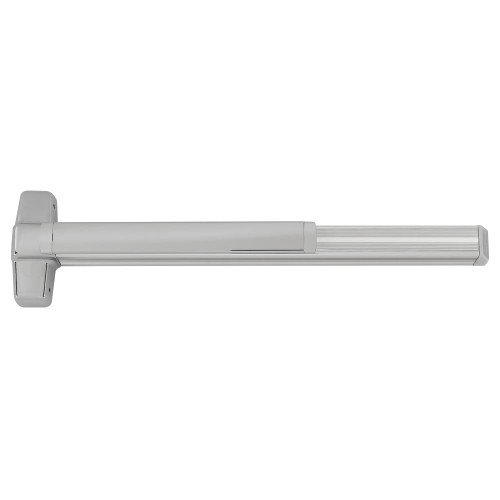

RX9950WDCL-DT-01-F 3 26D LHR Von Duprin 99 Series Dummy Trim Fire Rated Wood Door CVC Exit Device in Satin Chrome
The RX9950WDCL-DT-01-F 3 26D LHR is a Von Duprin 9950WDC Series Wood Door Concealed Vertical Cable exit device with L-01 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When installing a 9949/9950WDC cable device, make sure the cable runs clean without kinks. A kinked cable will bind and cause the device to malfunction. Route the cable through the door channels smoothly and check operation before finishing the install.
| Specifications | |
|---|---|
| Part Number | RX9950WDCL-DT-01-F 3 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9950WDC |
| Function | Dummy Trim |
| Lever Design | L-01 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit |
- Von Duprin 9950WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-01 Lever trim — pull operation from outside
- Satin Chrome finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
