Product Description
RX9957L-DT-18 3 US4 RHR Von Duprin 99 Series Dummy Trim Surface Three Point Latch Exit Device in Satin Brass
The RX9957L-DT-18 3 US4 RHR is a Von Duprin 9957 Series Surface Three Point Latch exit device with L-18 Lever trim in Satin Brass (US4/606), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When servicing a 9957 three-point latch, check all three latch points independently. A misaligned top or bottom bolt can cause the whole device to bind. Adjust strikes one at a time, starting with the rim latch, then top, then bottom.
| Specifications | |
|---|---|
| Part Number | RX9957L-DT-18 3 US4 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9957 |
| Function | Dummy Trim |
| Lever Design | L-18 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Satin Brass (US4/606) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9957 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-18 Lever trim — pull operation from outside
- Satin Brass finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

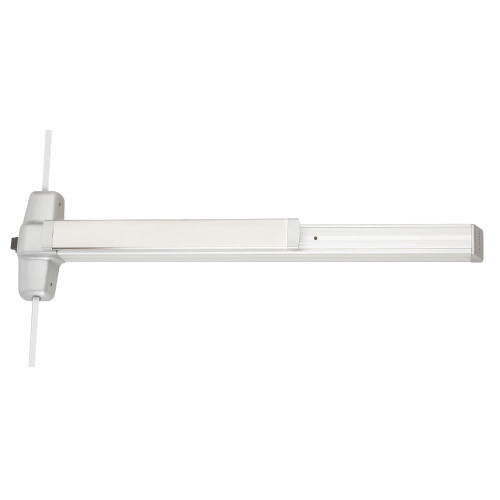

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
