Product Description
RX9957L-NL-17 3 313 LHR Von Duprin 99 Series Night Latch Surface Three Point Latch Exit Device in Duranodic Dark Bronze
The RX9957L-NL-17 3 313 LHR is a Von Duprin 9957 Series Surface Three Point Latch exit device with L-17 Lever trim in Duranodic Dark Bronze (313/313), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: When servicing a 9957 three-point latch, check all three latch points independently. A misaligned top or bottom bolt can cause the whole device to bind. Adjust strikes one at a time, starting with the rim latch, then top, then bottom.
| Specifications | |
|---|---|
| Part Number | RX9957L-NL-17 3 313 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9957 |
| Function | Night Latch |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9957 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-17 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated

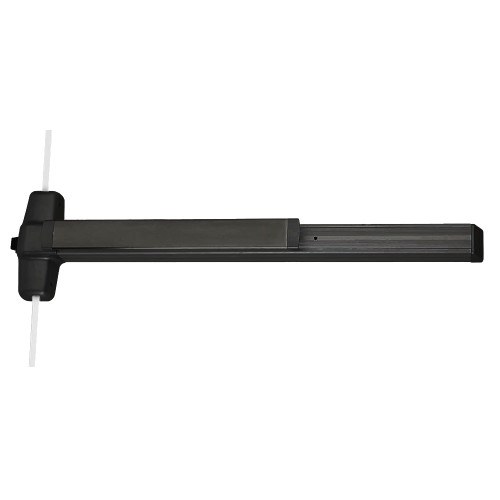

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
