Product Description

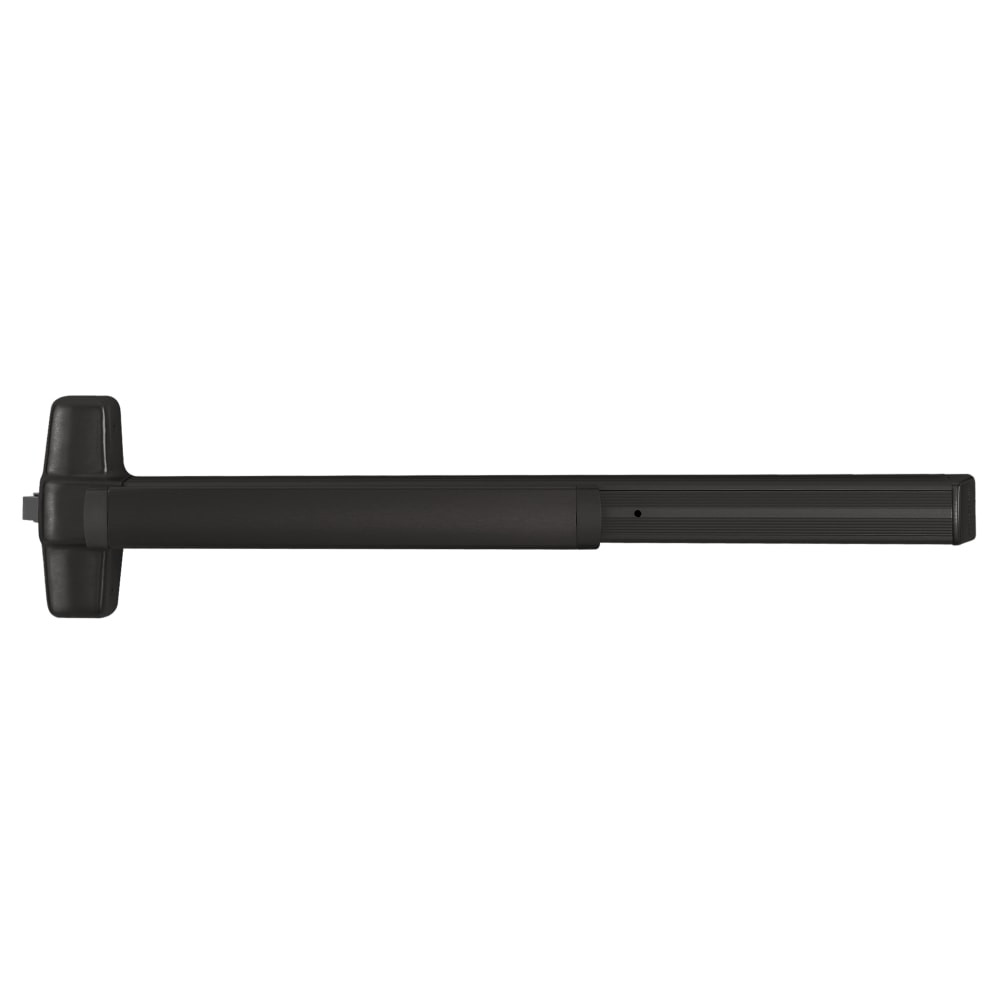

RX99L-17 3 315 LHR Von Duprin 99 Series Classroom Rim Exit Device in Black
The RX99L-17 3 315 LHR is a Von Duprin 99 Series Rim exit device with L-17 Lever trim in Black (315/315), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 99 series rim exit device is your fastest retrofit option. It mounts entirely on the inside surface of the door with no door prep required. On apartment buildings and rental properties where you can't modify the door, specify a rim device.
| Specifications | |
|---|---|
| Part Number | RX99L-17 3 315 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Classroom |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Black (315/315) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-17 Lever trim — pull operation from outside
- Black finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
