Product Description
RX99L-DT-05-F 3 US28 LHR Von Duprin 99 Series Dummy Trim Fire Rated Rim Exit Device in Anodized Aluminum
The RX99L-DT-05-F 3 US28 LHR is a Von Duprin 99 Series Rim exit device with L-05 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 99 series rim exit device is your fastest retrofit option. It mounts entirely on the inside surface of the door with no door prep required. On apartment buildings and rental properties where you can't modify the door, specify a rim device.
| Specifications | |
|---|---|
| Part Number | RX99L-DT-05-F 3 US28 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Dummy Trim |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-05 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated

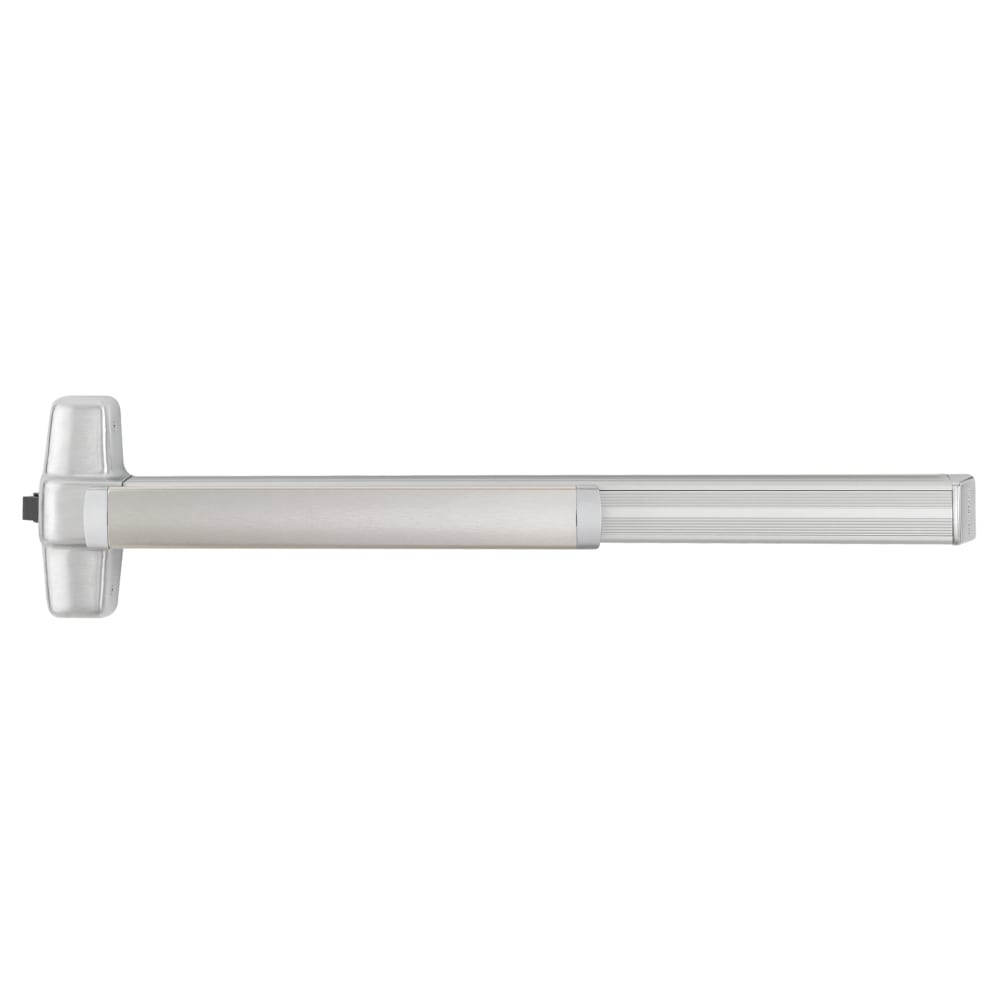

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
