Product Description

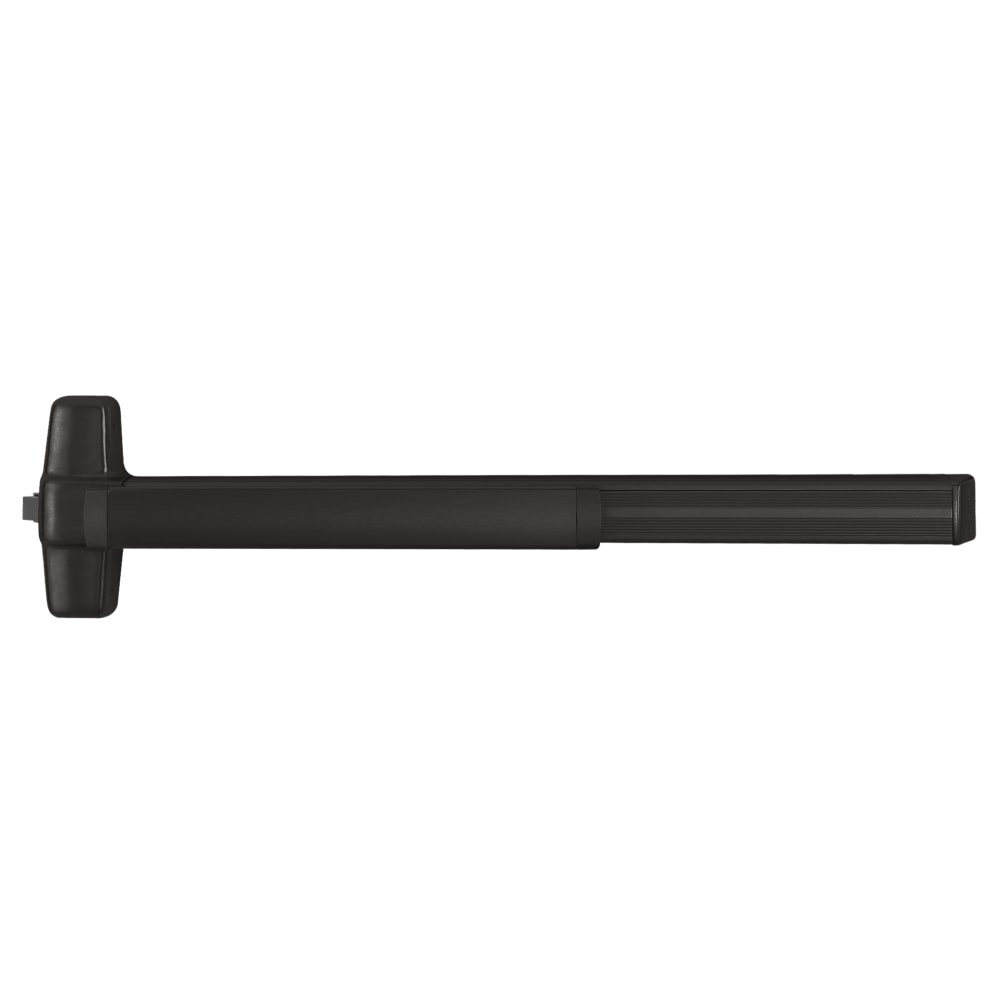

RX99L-KC-07-F 3 315 LHR Von Duprin 99 Series Key Capture Fire Rated Rim Exit Device in Black
The RX99L-KC-07-F 3 315 LHR is a Von Duprin 99 Series Rim exit device with L-07 Lever trim in Black (315/315), sized for 3' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Rim devices are visible on the door interior, so they're typically used on utilitarian doors (back exits, service doors, storage rooms) rather than customer-facing entrances. But they're reliable, affordable, and quick to install — spec them when aesthetics aren't the priority.
| Specifications | |
|---|---|
| Part Number | RX99L-KC-07-F 3 315 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Key Capture |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Black (315/315) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-07 Lever trim — pull operation from outside
- Black finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
