Product Description

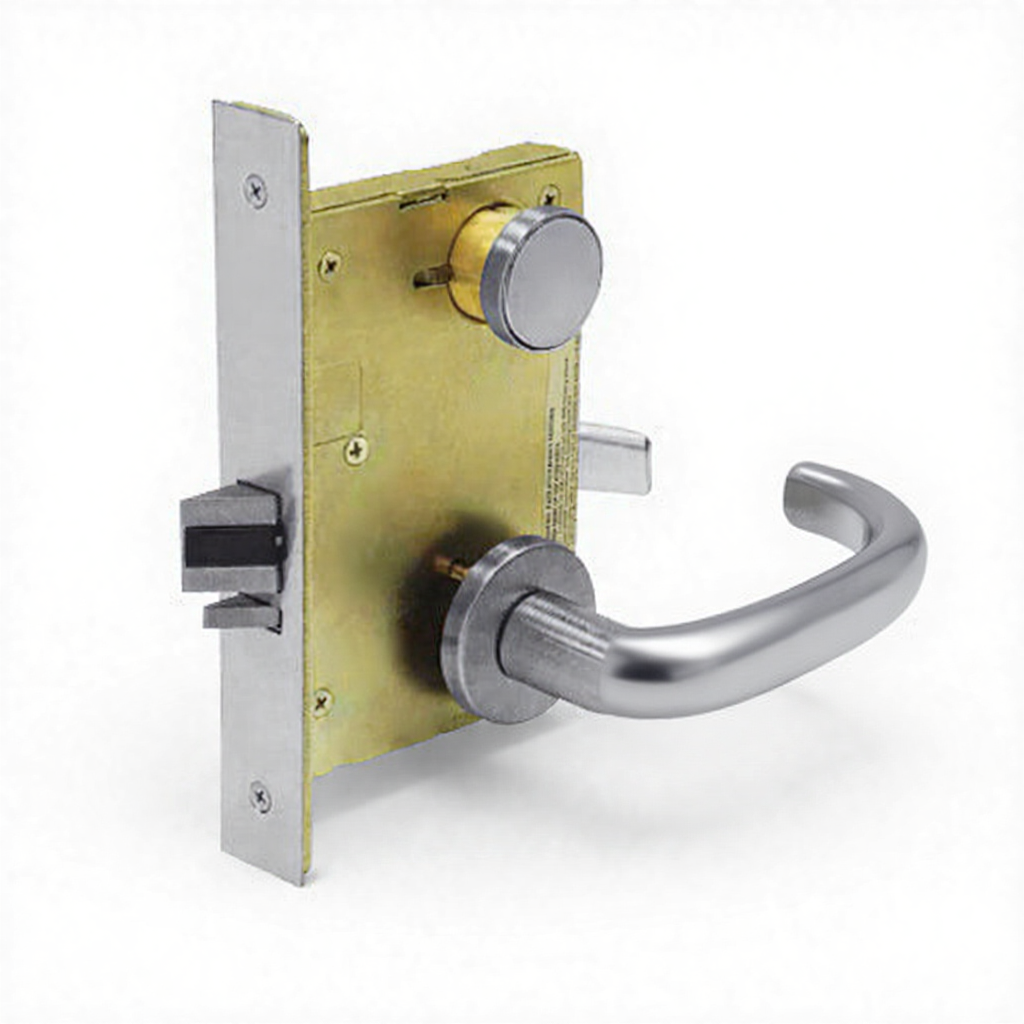

The Sargent RXLC-8270-24V-OB-26D is a 8200 Series Fail Safe mortise lock in Satin Chrome (US26D/626). Unlocks on power loss for life safety egress.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: RXLC-8270-24V-OB-26D | |
| RXLC | Request to Exit + IC prep |
| 8270 | Series 8200, Institution function |
| 24V | Voltage: 24V |
| OB | Trim code: OB |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | RXLC-8270-24V-OB-26D |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
