Product Description
The Sargent RXLC-8273-24V-OB-26D is a 8200 Series Fail Secure mortise lock in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: RXLC-8273-24V-OB-26D | |
| RXLC | Request to Exit + IC prep |
| 8273 | Series 8200, Fail Secure function |
| 24V | Voltage: 24V |
| OB | Trim code: OB |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | RXLC-8273-24V-OB-26D |
| Series | Sargent 8200 |
| Function | Fail Secure |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Secure function — Remains locked on power loss. Key override always available.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Ships Same Day — Order before 2PM EST and your Sargent product ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

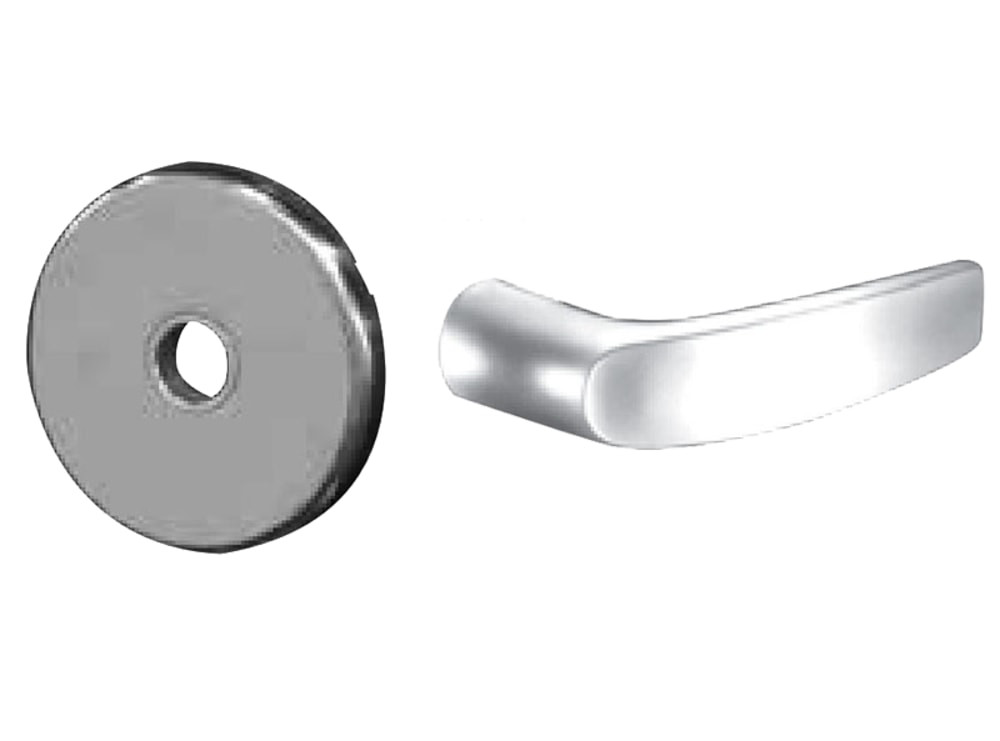

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
