Product Description
RXQEL9847WDCL-NL-06 3 313 RR Von Duprin 98 Series Night Latch Concealed Vertical Rod Exit Device in Duranodic Dark Bronze
The RXQEL9847WDCL-NL-06 3 313 RR is a Von Duprin 9847WDC Series Wood Door Concealed Vertical Rod exit device with L-06 Lever trim in Duranodic Dark Bronze (313/313), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Concealed vertical rod devices (9847/9848) hide the rods inside the door — cleaner look than surface rods. Trade-off: you need a prepped door with internal routing. On retrofit jobs, verify the door has CVR prep before quoting. If it doesn't, you're looking at field prep or a door swap.
| Specifications | |
|---|---|
| Part Number | RXQEL9847WDCL-NL-06 3 313 RR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847WDC |
| Function | Night Latch |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Duranodic Dark Bronze (313/313) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit + QEL |
- Von Duprin 9847WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-06 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration

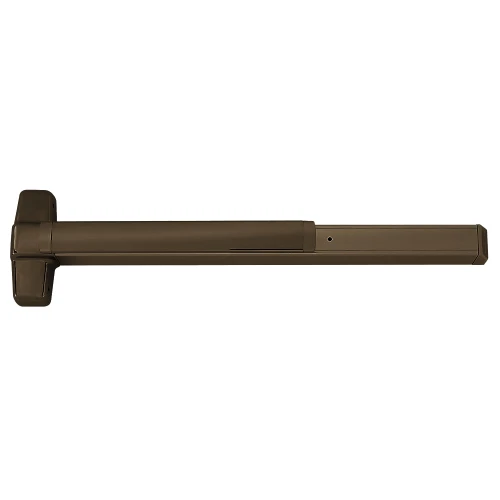

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
