Product Description
RXQEL9875L-NL-05 3 26D LHR Von Duprin 98 Series Night Latch Mortise Lock Exit Device in Satin Chrome
The RXQEL9875L-NL-05 3 26D LHR is a Von Duprin 9875 Series Mortise Lock exit device with L-05 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Mortise lock exit devices (9875) require a mortise pocket prepped into the door edge. On retrofit jobs, verify the existing mortise prep is compatible with Von Duprin's 9875 body dimensions. A Schlage L-series prep is close but not identical — don't assume cross-compatibility.
| Specifications | |
|---|---|
| Part Number | RXQEL9875L-NL-05 3 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Function | Night Latch |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit + QEL |
- Von Duprin 9875 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- L-05 Lever trim — pull operation from outside
- Satin Chrome finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

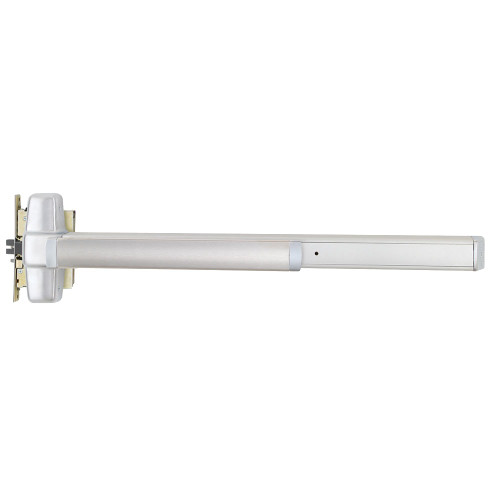

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
