Product Description

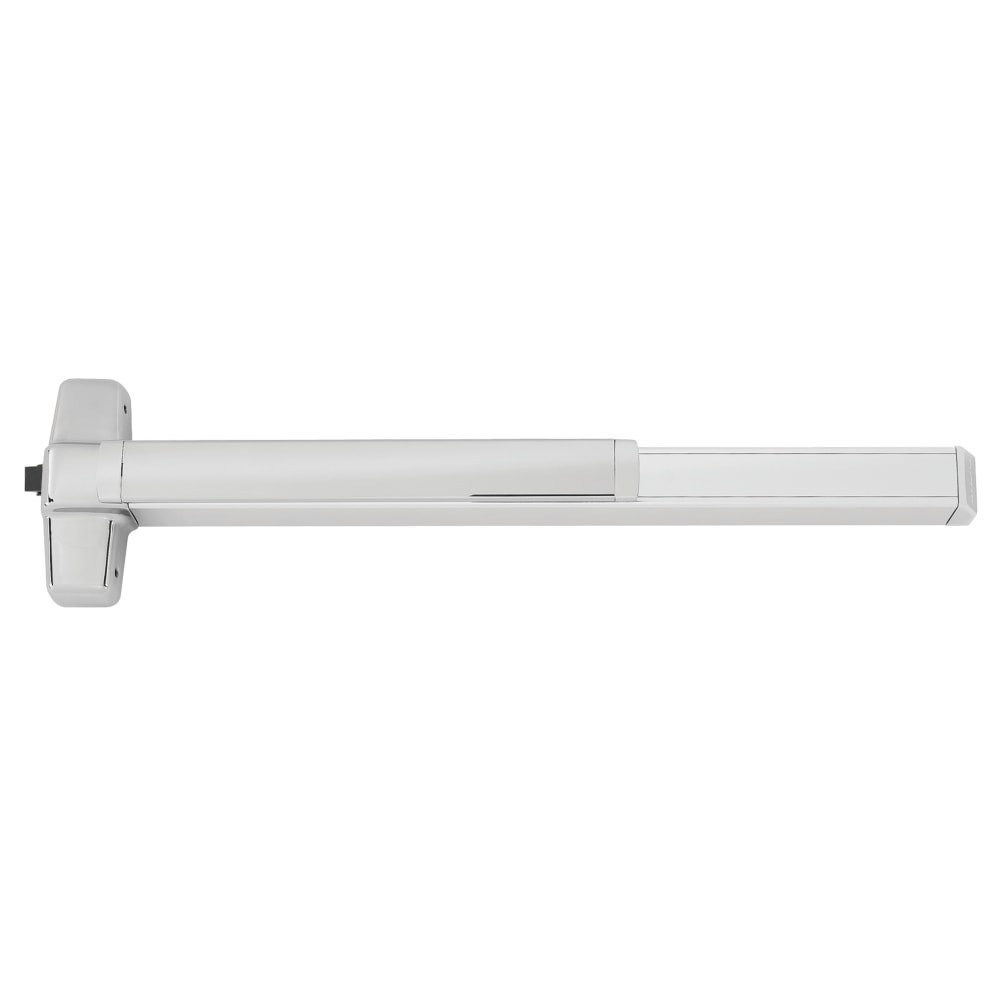

RXQEL98DT 4 US26 Von Duprin RX + QEL 98 Series Dummy Trim Rim Exit Device Bright Chrome
The RXQEL98DT 4 US26 is a Von Duprin 98 Series rim exit device in Bright Chrome (US26/625), sized for 4' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | RXQEL98DT 4 US26 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Chrome (US26/625) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit + QEL |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Bright Chrome finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration
- Hex key dogging standard — hold latch retracted during business hours
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
