Product Description
RXQEL98L-KC-05-F 4 315 RHR Von Duprin 98 Series Key Capture Fire Rated Rim Exit Device in Black
The RXQEL98L-KC-05-F 4 315 RHR is a Von Duprin 98 Series rim exit device with L-05 Lever trim in Black (315/315), sized for 4' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Hex key dogging is standard on non-fire-rated 98 rim devices. That means you can hold the latch retracted during business hours so the door operates as a push/pull. Fire-rated models delete dogging per UL code — if the customer needs doors to stay open on a fire-rated opening, budget for mag holders tied to the fire alarm.
| Specifications | |
|---|---|
| Part Number | RXQEL98L-KC-05-F 4 315 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Key Capture |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Black (315/315) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit + QEL |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-05 Lever trim — pull operation from outside
- Black finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration

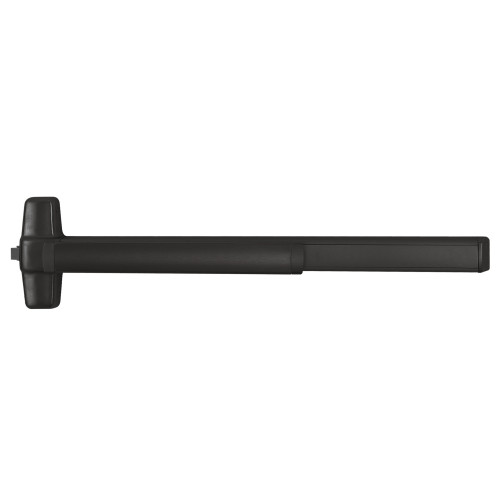

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
