Product Description

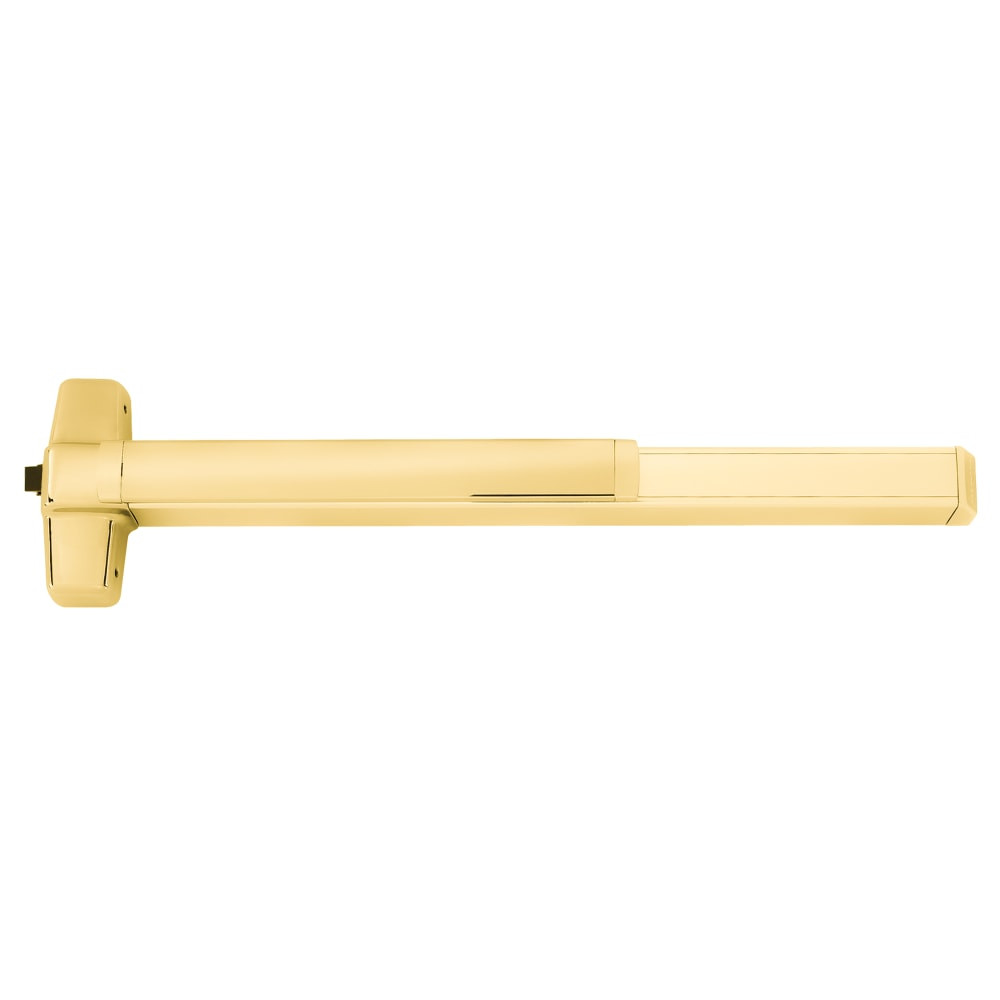

RXQEL98L-NL-03 4 US3 RHR Von Duprin 98 Series Night Latch Rim Exit Device in Bright Brass
The RXQEL98L-NL-03 4 US3 RHR is a Von Duprin 98 Series rim exit device with L-03 Lever trim in Bright Brass (US3/605), sized for 4' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | RXQEL98L-NL-03 4 US3 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Night Latch |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Brass (US3/605) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit + QEL |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-03 Lever trim — pull operation from outside
- Bright Brass finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
