Product Description

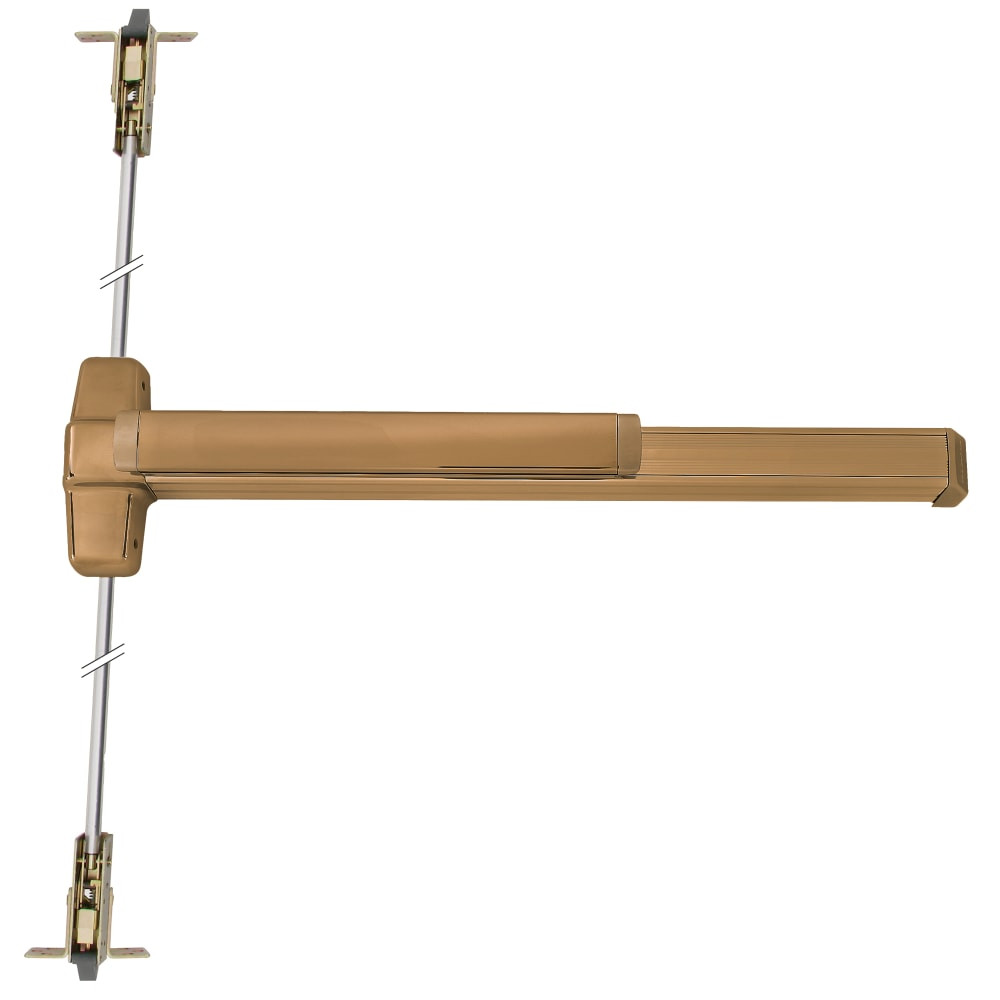

RXQEL9947L-07-F 4 US10 LHR Von Duprin 99 Series Classroom Fire Rated Concealed Vertical Rod Exit Device in Satin Bronze
The RXQEL9947L-07-F 4 US10 LHR is a Von Duprin 9947 Series Concealed Vertical Rod exit device with L-07 Lever trim in Satin Bronze (US10/612), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9947 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | RXQEL9947L-07-F 4 US10 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Classroom |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Bronze (US10/612) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit + QEL |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-07 Lever trim — pull operation from outside
- Satin Bronze finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
