Product Description
RXQEL9949L-02 3 26D LHR Von Duprin 99 Series Classroom Concealed Vertical Cable Exit Device in Satin Chrome
The RXQEL9949L-02 3 26D LHR is a Von Duprin 9949 Series Concealed Vertical Cable exit device with L-02 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Vertical cable devices (9949/9950WDC) are great for applications where rigid rods would be impractical — curved door tops, non-standard door prep, or doors that have seen better days. The cable routes through the door more easily and tolerates slight misalignment better than rigid rods.
| Specifications | |
|---|---|
| Part Number | RXQEL9949L-02 3 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9949 |
| Function | Classroom |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit + QEL |
- Von Duprin 9949 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-02 Lever trim — pull operation from outside
- Satin Chrome finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration

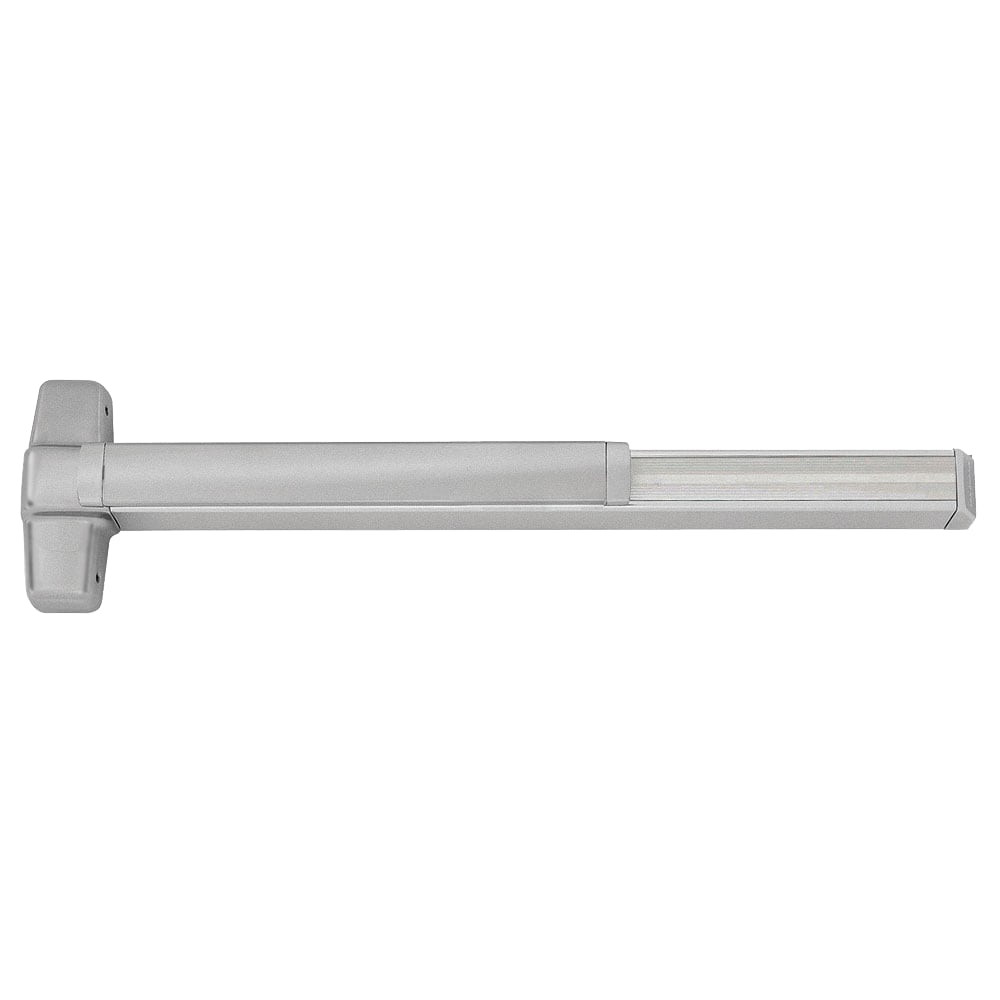

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
