Product Description
RXQEL9949L-DT-06-F 3 26D LHR Von Duprin 99 Series Dummy Trim Fire Rated Concealed Vertical Cable Exit Device in Satin Chrome
The RXQEL9949L-DT-06-F 3 26D LHR is a Von Duprin 9949 Series Concealed Vertical Cable exit device with L-06 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Vertical cable devices (9949/9950WDC) are great for applications where rigid rods would be impractical — curved door tops, non-standard door prep, or doors that have seen better days. The cable routes through the door more easily and tolerates slight misalignment better than rigid rods.
| Specifications | |
|---|---|
| Part Number | RXQEL9949L-DT-06-F 3 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9949 |
| Function | Dummy Trim |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit + QEL |
- Von Duprin 9949 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-06 Lever trim — pull operation from outside
- Satin Chrome finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

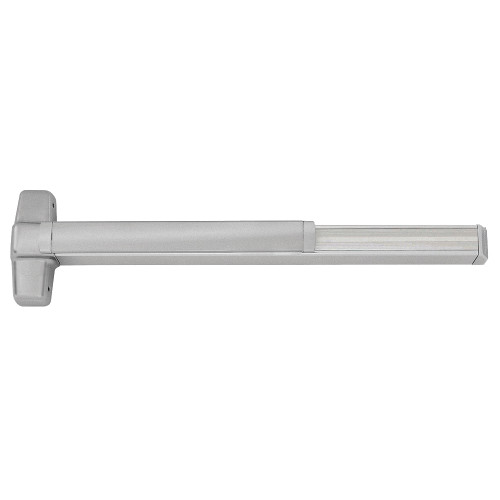

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
