Product Description

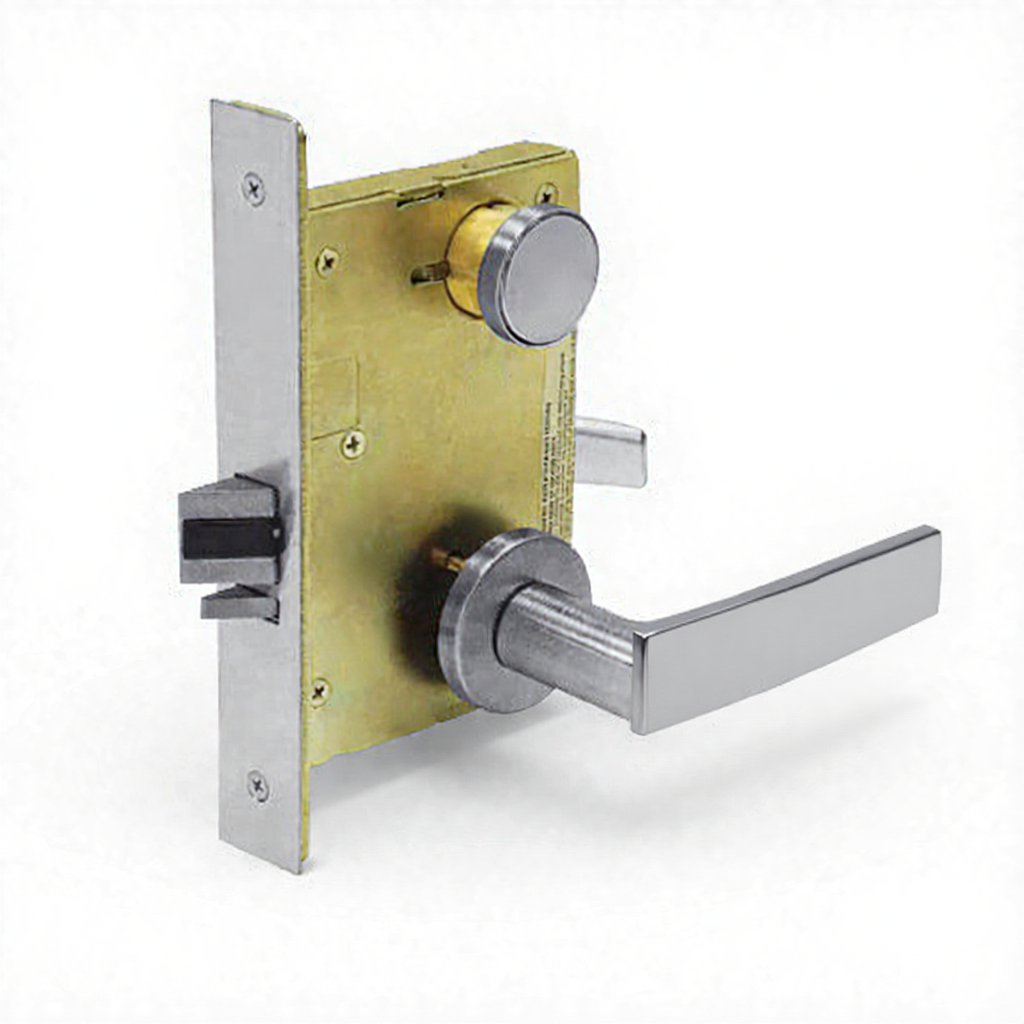

The Sargent V10-8225-LNP-26D is a 8200 Series Dormitory mortise lock in Satin Chrome (US26D/626). Outside lever locked by inside thumbturn, unlocked by key from outside. Inside always free.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: V10-8225-LNP-26D | |
| V10 | Visual Indicator (both sides) |
| 8225 | Series 8200, Dormitory function |
| LNP | Trim code: LNP |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | V10-8225-LNP-26D |
| Series | Sargent 8200 |
| Function | Dormitory |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Dormitory function — Outside lever locked by inside thumbturn, unlocked by key from outside. Inside a
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

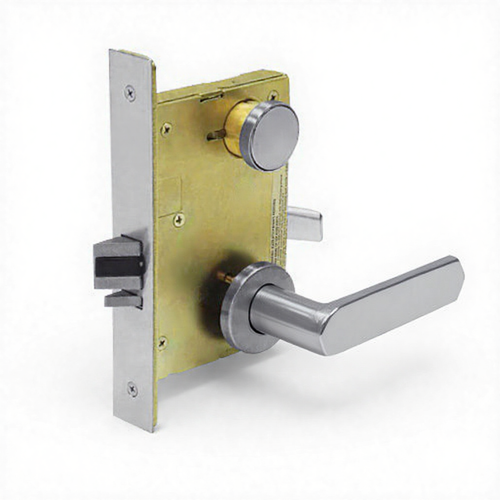

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
