Product Description
XP98K-F-US28-3 Von Duprin XP98 Series with 996K Knob Fire Rated Rim Exit Device in Anodized Aluminum
| Part Number Breakdown: XP98K-F-US28-3 | |
|---|---|
| XP98 | Extra Protection 98 Series Rim Exit Device |
| K | Knob Trim |
| F | Fire Rated (UL Listed up to 3-Hour) |
| US28 | Aluminum (BHMA 628) |
| 3 | 3 Foot Door |
The XP98K-F-US28-3 is a Von Duprin XP98 Series Extra Protection rim exit device with Knob trim in Aluminum, sized for 3 Foot doors. Knob Trim — Night Latch function. Outside knob locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. UL listed for up to 3-hour fire-rated door assemblies. Hex key dogging standard. Field reversible handing. The XP (Extra Protection) model features a reinforced shield over the mechanism case — designed for high-abuse environments where standard exit devices take damage.
Pro-Tip from Our Locksmiths: Knob trim on the XP98 is common in retrofit applications where the building already has knob-style hardware throughout and they want the exit devices to match. The XP reinforced case is a smart upgrade if the old standard 98 has taken damage over the years. Fire-rated XP98 devices get UL listed for up to 3-hour fire doors. The fire-rated version uses a top latch with fire bolt that auto-latches on closing — make sure the door and frame are also fire-rated to maintain the assembly's listing.
| Specifications | |
|---|---|
| Part Number | XP98K-F-US28-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin XP98 |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Aluminum (US28/628) |
| Door Size | 3 Foot |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — 3-Hour UL Listed |
- Von Duprin XP98 Series Extra Protection touch bar mechanism — Grade 1 architectural-grade panic hardware with reinforced mechanism shield
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Aluminum finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The XP98 is the vandal-resistant upgrade to the standard Von Duprin 98 Series. Same mounting prep, same strike, same trim compatibility — but with the reinforced mechanism case for high-abuse environments. Compatible with all 98 Series trim options (L, K, NL, TP, DT).

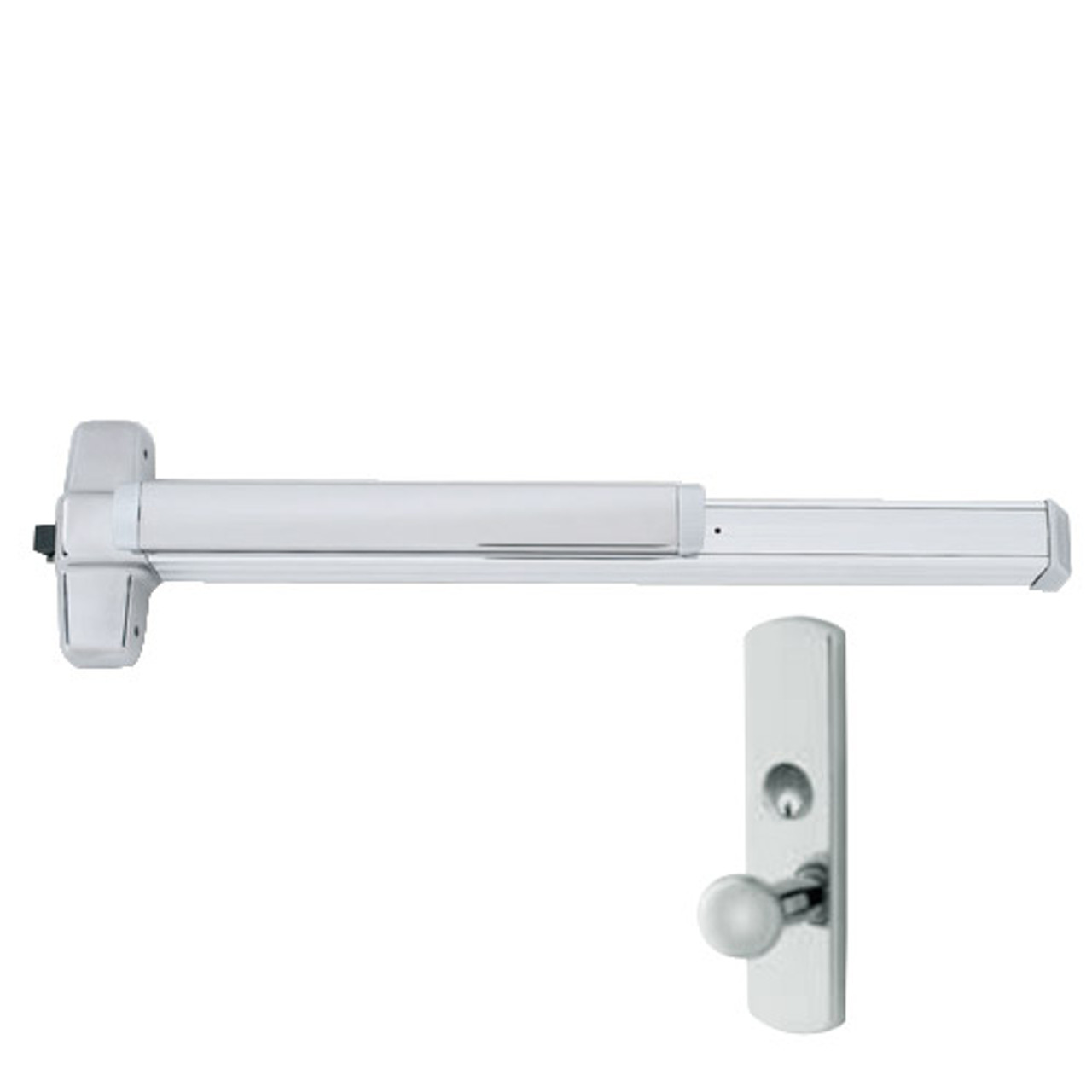

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
