Product Description
XP98L-02-F 3 313 RHR Von Duprin Fire Rated Extra Protection (XP) 98 Series Lever Rim Exit Device Dark Bronze
| Part Number Breakdown: XP98L-02-F 3 313 RHR | |
|---|---|
| XP98 | Extra Protection 98 Series Rim Exit Device |
| L | Lever Trim |
| 02 | 02 Lever Design |
| F | Fire Rated (UL Listed up to 3-Hour) |
| 313 | Duranodic Dark Bronze (BHMA 313) |
| 3 | 3 Foot Door |
| RHR | Right Hand Reverse |
The XP98L-02-F 3 313 RHR is a Von Duprin XP98 Series Extra Protection rim exit device with Lever trim in Dark Bronze, sized for 3 Foot doors. Lever Trim — Night Latch function. Outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. UL listed for up to 3-hour fire-rated door assemblies. Hex key dogging standard. Field reversible handing. The XP (Extra Protection) model features a reinforced shield over the mechanism case — designed for high-abuse environments where standard exit devices take damage.
Pro-Tip from Our Locksmiths: When installing lever trim on the XP98, check that the tailpiece guide is horizontal before tightening — a slightly rotated guide is the #1 cause of stiff key operation. The L-06 is the most common lever for commercial projects, but the L-17 offers a more ergonomic pull angle for ADA compliance. Fire-rated XP98 devices get UL listed for up to 3-hour fire doors. The fire-rated version uses a top latch with fire bolt that auto-latches on closing — make sure the door and frame are also fire-rated to maintain the assembly's listing.
| Specifications | |
|---|---|
| Part Number | XP98L-02-F 3 313 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin XP98 |
| Function | Night Latch |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Duranodic Dark Bronze (313/313) |
| Door Size | 3 Foot |
| Handing | Right Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — 3-Hour UL Listed |
- Von Duprin XP98 Series Extra Protection touch bar mechanism — Grade 1 architectural-grade panic hardware with reinforced mechanism shield
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Dark Bronze finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The XP98 is the vandal-resistant upgrade to the standard Von Duprin 98 Series. Same mounting prep, same strike, same trim compatibility — but with the reinforced mechanism case for high-abuse environments. Compatible with all 98 Series trim options (L, K, NL, TP, DT).
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

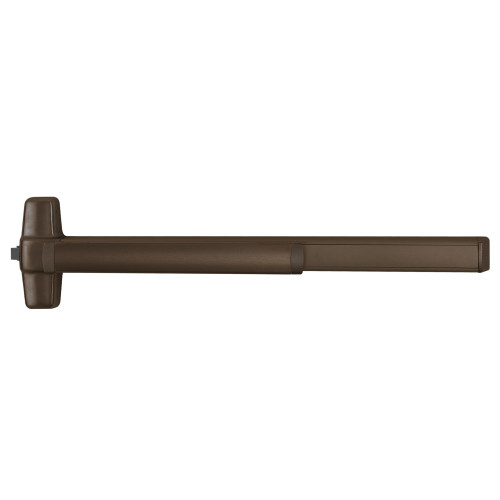

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
