Product Description
The Sargent 10XG04-LP-03 is a 10 Line cylindrical lock with Storeroom function in Bright Brass (US3/605). Outside lever is always locked — key required for every entry. Inside lever is always free for exit. Grade 1 certified for heavy commercial use.
Ships with a Sargent 6-pin conventional cylinder (LA keyway standard) and two keys.
Pro-Tip from Our Locksmiths: The 10X Line is Sargent's ANSI/BHMA A156.2 Grade 1 cylindrical lock, built for heavy duty commercial and institutional doors. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 10XG04-LP-03 |
| Function | Storeroom |
| Finish | Bright Brass (US3/605) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Storeroom function for commercial access control
- Bright Brass (US3/605) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

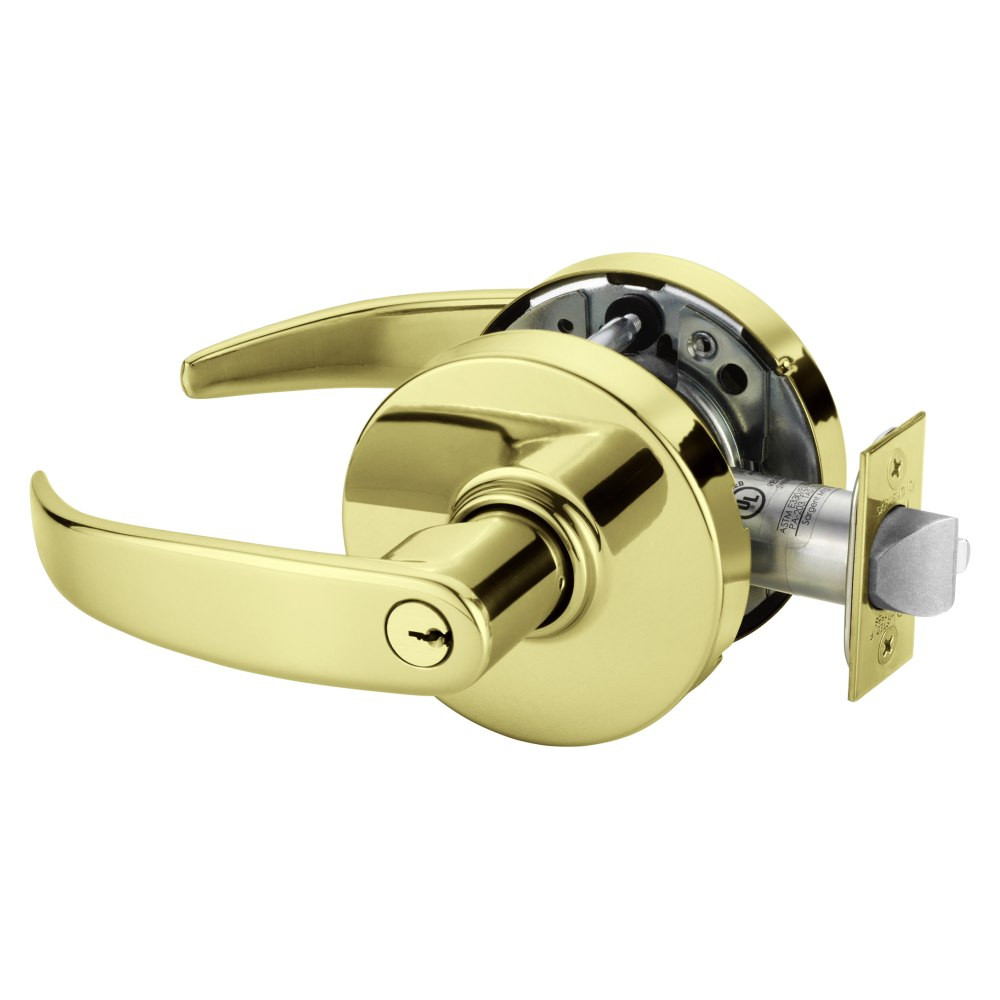

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
