Product Description
The Sargent 10XG08-LL-26D is a 10X Line cylindrical lock with Classroom function in Satin Chrome (US26D/626). Outside lever locked until unlocked by key, relocks automatically when door closes. Inside always free. Grade 1 certified for heavy commercial use.
Ships with a Sargent 6-pin conventional cylinder (LA keyway standard) and two keys.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 10XG08-LL-26D |
| Function | Classroom |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Classroom function for commercial access control
- Satin Chrome (US26D/626) finish
Works With: Compatible with Sargent conventional cylinders.

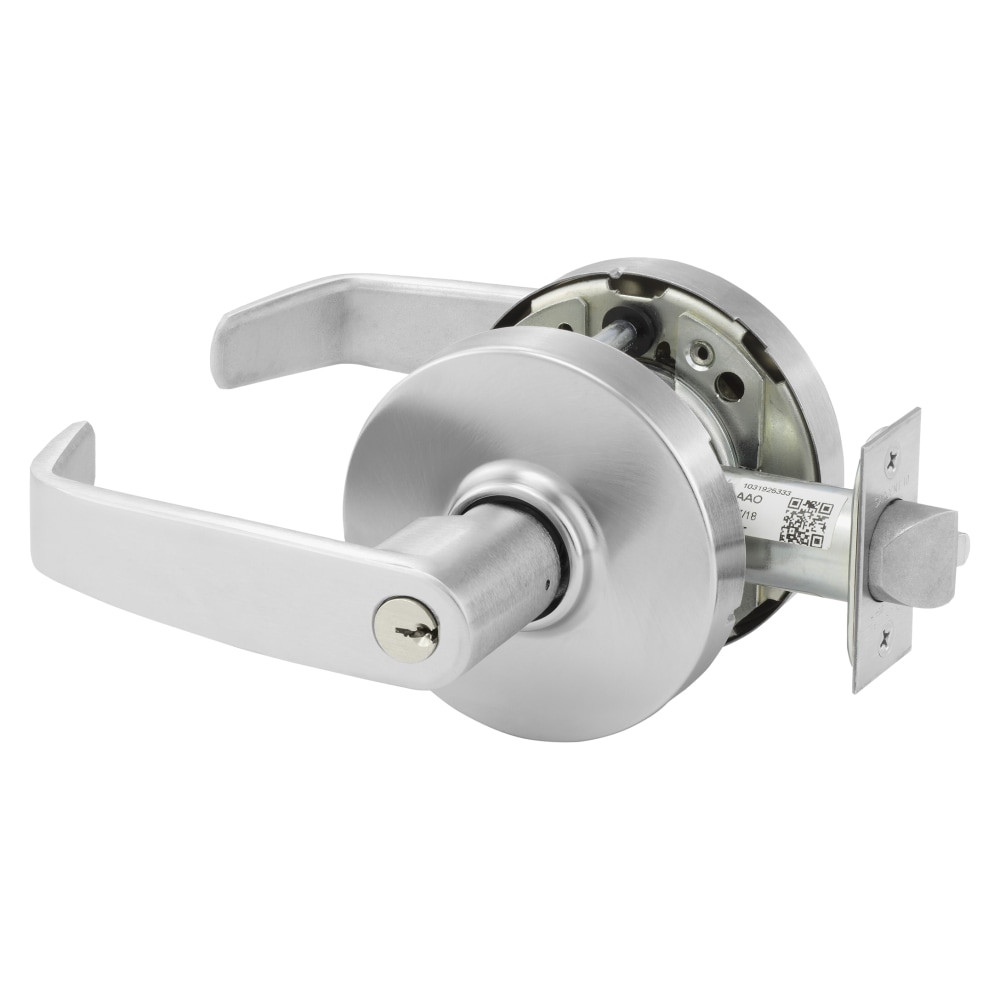

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Classroom
Series 10X
Finish Satin Chrome
Trim L Rose, L Lever
Cylinder Standard Cylinder
Mount Type Cylindrical
