11-630 Don Jo 5/8" Round Door Pull with 5 1/2" (inches) CTC in Satin Stainless Steel Finish

Product Description

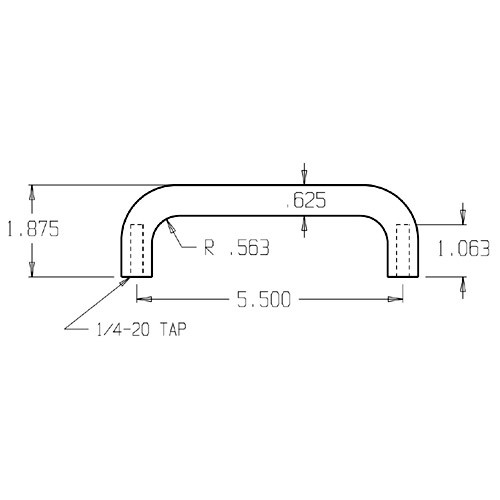

11-630 Don Jo 5/8" Round Door Pull with 5 1/2" Center to Center length in Satin Stainless Steel Finish

The Don Jo 11-630 5/8" Round Door Pull communicates an unmistakable message of quality and strength while maintaining a beautiful elegance that is normally not associated with door hardware. The 11-630 series is available in 5 1/2" (ctc) center to center length.

Features and Benefits:

• Satin Stainless Steel Finish
• Solid bar stock material
• Dimensions: 6.13 x 2 x 1.38"
• Size center-to-center (ctc): 5 1/2"
• Diameter: 5/8"
• Overall: 6 1/8"
• Projection: 2"
• Clearance: 1 3/8"
• ANSI J401 approved door hardware
• 1/4-20 thru bolt & finish washer fastener
• One year limited manufacturer's warranty

Mounting & Ordering (Don-Jo published specification)

• Wood or metal doors — mounts thru-bolt, using the supplied 1/4-20 fasteners with finish washer.
• Specify door thickness if greater than 1-3/4". The supplied fasteners are sized for a standard 1-3/4" door; a thicker door must be specified when the order is placed.
• Back-to-back mounting is not available on 5/8" diameter pulls.
• Concealed mounting available.
• Add prefix H for 2-1/2" clearance.

Source: Don-Jo Mfg. published catalog, Door Pulls & Push Plates.
