Product Description
Rim exit devices are the simplest and most common configuration — the latch engages the strike at the edge of the door. One device, one strike, one installation.
The Sargent 1256-8874G-24V-ETJ-RHR-10 is a fire-rated Grade 1 rim exit device from the 80 Series for 48" openings with Fail Secure function. UL listed for fire-rated openings up to 3 hours.
| SKU Breakdown: 1256-8874G-24V-ETJ-RHR-10 | |
| 1256 | Door width (inches) |
| 8874G | Device model: 8874G |
| 24V | Device model: 24V |
| ETJ | Configuration: ETJ |
| RHR | Right Hand Reverse |
| 10 | Finish: Satin Bronze |
c Lever provides outside access while the push bar handles emergency egress from inside.
Fire Rated (12- prefix) — This device is UL listed for fire-rated openings. Do NOT substitute a non-fire-rated device (8- prefix) on a fire-rated opening — your fire marshal will require removal and replacement.
Pro-Tip from Our Locksmiths: The most expensive exit device mistake we see? Ordering concealed vertical rod for a door that's not prepped for it. CVR devices require internal routing channels in the door — you can't retrofit a standard hollow metal door. If the door isn't prepped, go surface vertical rod instead.
| Certification | ANSI A156.3, BHMA Grade 1, UL 10C |
| Warranty | 3-Year Limited (electromechanical). Mechanical components: 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial exit device rating
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- c Lever — outside entry access
- Satin Bronze finish
Related Products:
- Browse all Sargent Exit Devices — Rim, surface vertical rod, and concealed vertical rod

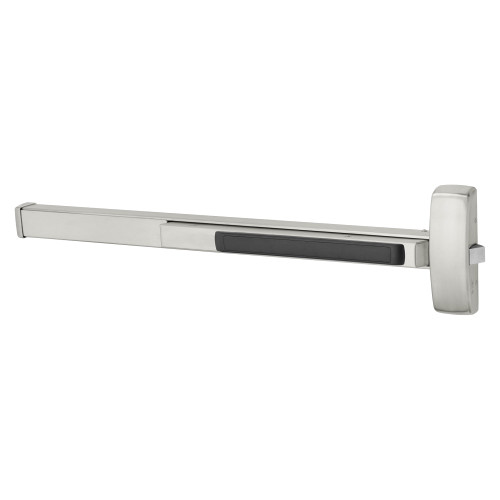

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 3-year limited warranty on electromechanical components covering defects in materials and workmanship under normal use and service. Mechanical components retain their own warranty period. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Exit Device - Rim
Function Fail Secure
Series 80
Finish Satin Bronze
Trim c Lever
Mount Type Rim
Voltage 12/24VDC
