Product Description
Concealed vertical rod devices hide the rods inside the door for a cleaner appearance. The trade-off for better aesthetics? The door must be prepped for internal rod routing, and field service requires removing the push bar.
The Sargent 1256-MD8643F-RHR-3 is a fire-rated Grade 1 concealed vertical rod exit device from the 80 Series for 36" openings with Classroom function. UL listed for fire-rated openings up to 3 hours.
| SKU Breakdown: 1256-MD8643F-RHR-3 | |
| 1256 | Door width (inches) |
| MD8643F | Device model: MD8643F |
| RHR | Right Hand Reverse |
| 3 | Finish code: 3 |
This device is Right Hand Reverse. Exit devices are HANDED and cannot be reversed in the field. Stand outside the door facing it: hinges on the left = Left Hand, hinges on the right = Right Hand. If the door swings toward you, add "Reverse." Verify your handing before ordering.
Fire Rated (12- prefix) — This device is UL listed for fire-rated openings. Do NOT substitute a non-fire-rated device (8- prefix) on a fire-rated opening — your fire marshal will require removal and replacement.
Bright Brass — the classic 03 finish. Traditional, formal, and still specified on government buildings, courthouses, and historic renovations.
Pro-Tip from Our Locksmiths: The most expensive exit device mistake we see? Ordering concealed vertical rod for a door that's not prepped for it. CVR devices require internal routing channels in the door — you can't retrofit a standard hollow metal door. If the door isn't prepped, go surface vertical rod instead.
| Handing | Right Hand Reverse |
| Certification | ANSI A156.3, BHMA Grade 1, UL 10C |
| Warranty | 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial exit device rating
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- Bright Brass finish
Related Products:
- Browse all Sargent Exit Devices — Rim, surface vertical rod, and concealed vertical rod

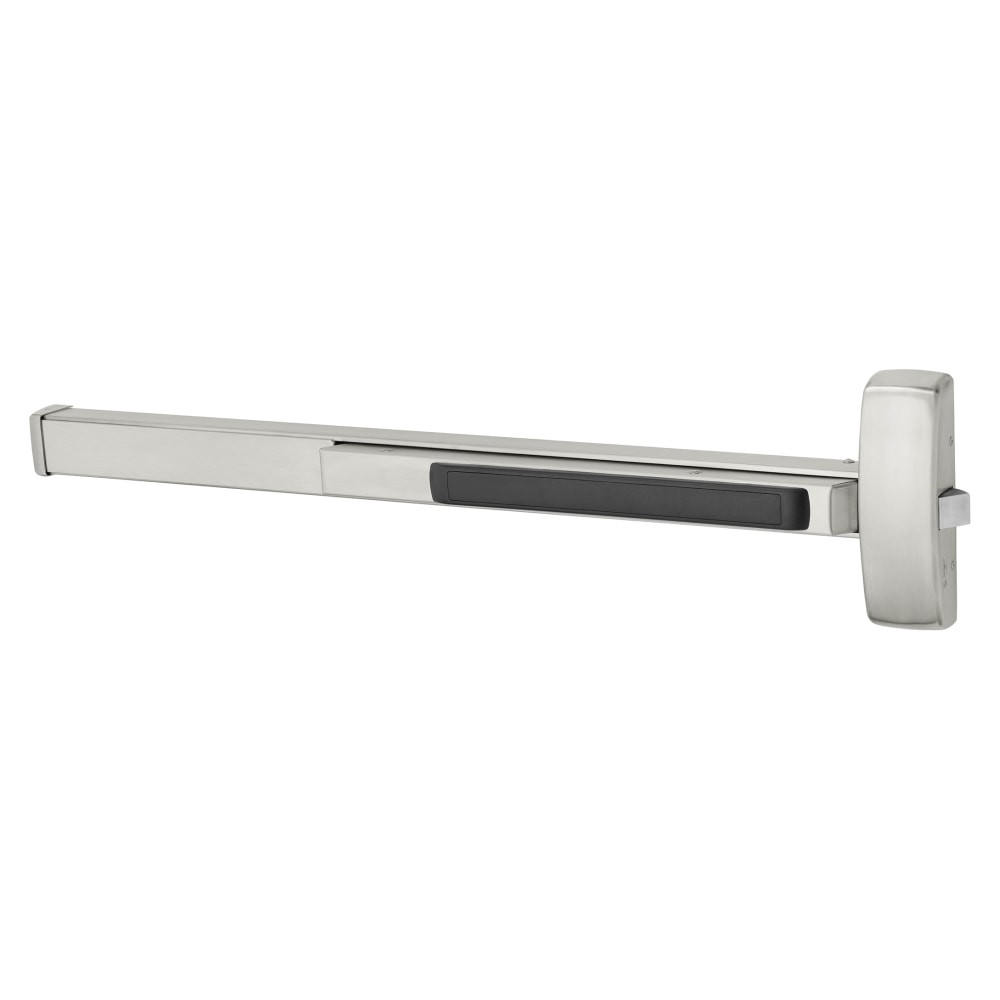

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 5-year limited warranty on exit devices covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Exit Device - Concealed Vertical Rod
Function Classroom
Series 80
Finish Bright Brass
Mount Type Concealed Vertical Rod
