Product Description

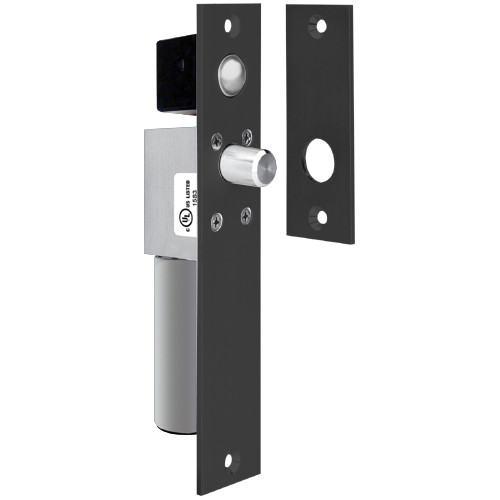

1490AIYB SDC Fits 1-1/2 inch Frame Non UL FailSafe Spacesaver Mortise Bolt Lock with Bolt Position Sensor in Black Finish
The SDC 1490AIYB spacesaver mortise bolt is designed for safety applications, the door unlocks automatically when power is interrupted by the access control, power failure or a signal from the fire life safety system. The Spacesaver bolt projects at a right angle to the lock mechanism, so the lock installs through a simple mortise cutout in virtually any standard frame or in most door lock stiles, with the entire lock concealed. The 1490 is built to fit a narrow 1-1/2" frame or door stile.
The 1490 has a stainless steel bolt and a specification grade solenoid, with automatic relock through a field adjustable, bidirectional relock ball switch. Dual voltage is field selectable. Voltage and current spike protection is built in.
Features and Benefits:
- Black finish
- Faceplate: 8"L x 1-1/2"W x 1/8"D - standard
- Strike: 4"L x 1.5"W x 1-9/16"D
- Function: Fits 1-1/2" frame (non UL), failsafe
- Bolt position sensor, SPDT is included
- Bolt Material: Stainless steel
- Fits narrow 1-1/2" frames or door stiles
- Bolt Diameter: 5/8"
- Adjustable auto relock switch
- Dual Voltage Coil: 0.45 Amp @ 24VDC continuous duty, 0.9 Amp @ 12VDC continuous duty
- Mounting Tabs: Two aluminum mounting tabs are provided for easy lock installation
