Product Description

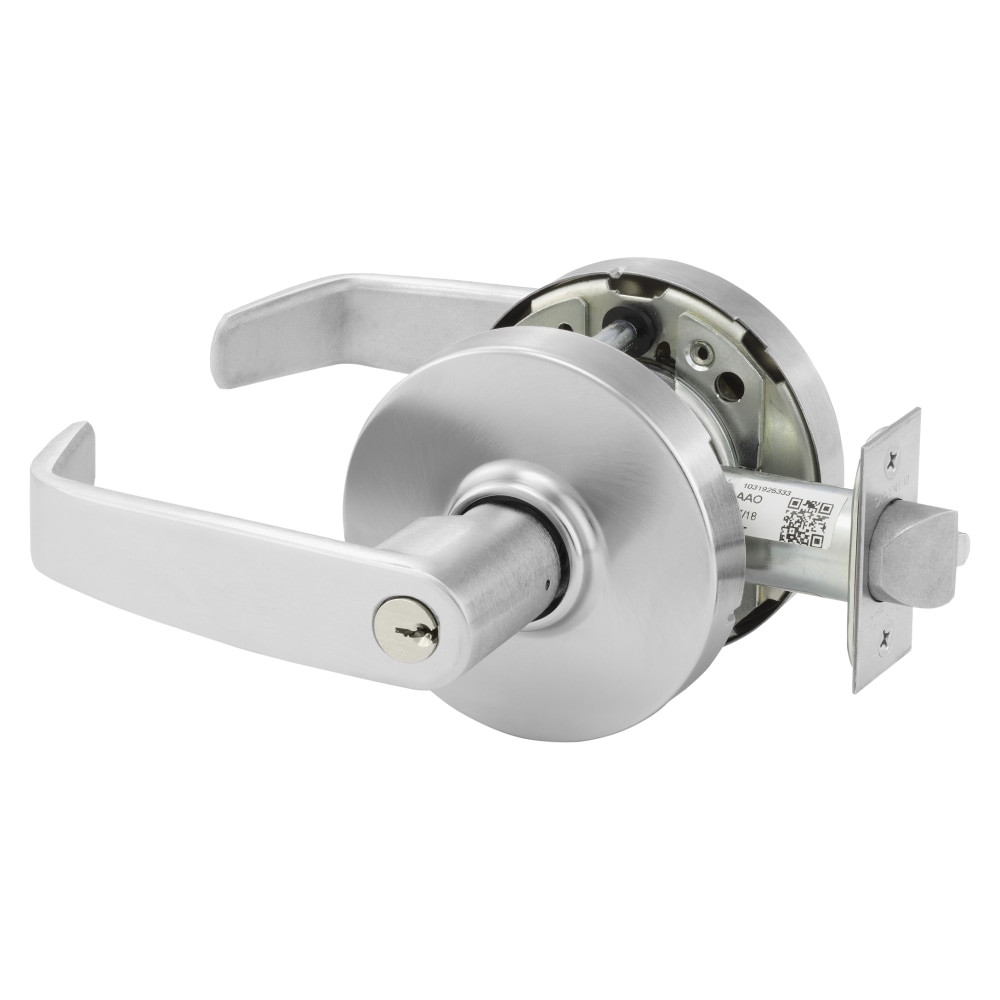

The Sargent 202860-7G37-LL-26D is a 7 Line cylindrical lock with Classroom function in Satin Chrome (US26D/626). Outside lever locked until unlocked by key, relocks automatically when door closes. Inside always free. Grade 2 certified for standard-duty commercial use.
Prepped for a Sargent LFIC removable core (60- option): a disposable plastic core is provided and the permanent core is ordered separately.
| SKU Breakdown: 202860-7G37-LL-26D | |
| 202860 | 20 = 2-3/8" backset latch; 28 = 808 ANSI strike; 60 = accepts Sargent LFIC removable core |
| 7G37 | Series and Classroom function |
| LL | Lever/rose design: LL |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 202860-7G37-LL-26D |
| Function | Classroom |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Classroom function for commercial access control
- Satin Chrome (US26D/626) finish
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 5-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Classroom
Series 7
Finish Satin Chrome
Trim L Lever
Cylinder Interchangeable Core
Mount Type Cylindrical
