Product Description

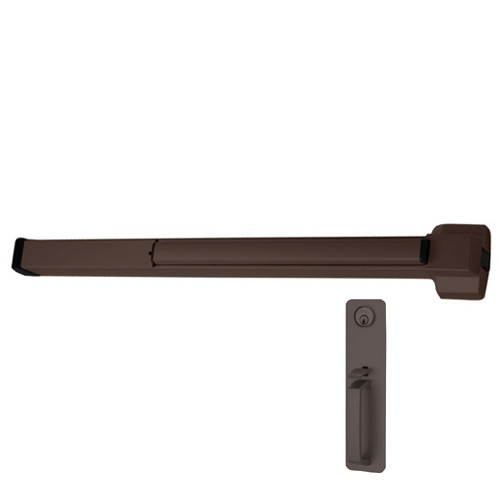

22TP-F-SP313-3 Von Duprin 22 Series with 230TP Thumbpiece Fire Rated Rim Mounted Exit Device in Powder Coated Dark Bronze
The Von Duprin 22TP-F-SP313-3 is a Grade 1 wide stile pushpad rim exit device for single doors, or pairs with a mullion, on aluminum, hollow metal and wood doors. It fits stiles as narrow as 3-13/16" and covers the 161 cutout on stock hollow metal doors. Thumbpiece Trim — outside thumbpiece depresses to retract the latch. Key locks and unlocks the thumbpiece on keyed functions. Ships less cylinder — order a rim cylinder separately to match your existing keyway.
The 22 Series pushpad provides a clean, modern activation surface that blends with aluminum storefront framing. Available in 3-foot width to match your door size. Unlike crossbar devices, the pushpad concentrates the push area in the center of the door for a streamlined look. UL listed for fire exit hardware — no mechanical dogging on fire-rated models. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The 22 Series comes in sprayed finishes (SP28 Aluminum, SP313 Dark Bronze) that hold up well on exterior storefront doors. The sprayed finish is tougher than standard US finishes for weather exposure. If the door faces direct sun and rain, go with SP28 — the dark bronze shows weathering faster.
| Specifications | |
|---|---|
| Part Number | 22TP-F-SP313-3 |
| Function | TP - Thumbpiece |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Door Width | 3-Foot (36") |
| Door Material | Aluminum, Hollow Metal, Wood, Composite |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Wide stile pushpad design — fits stiles as narrow as 3-13/16"
- UL listed for fire exit hardware — no mechanical dogging per code
- 3-foot width for standard 36" door openings
- Dark Bronze (SP313/695) powder-coated finish — weather resistant
- Non-handed — same device fits LHR and RHR door swings
Works With: The 230TP thumbpiece trim is included. Order a rim cylinder separately. For pairs of doors, see the 2227 Surface Vertical Rod.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
