Product Description

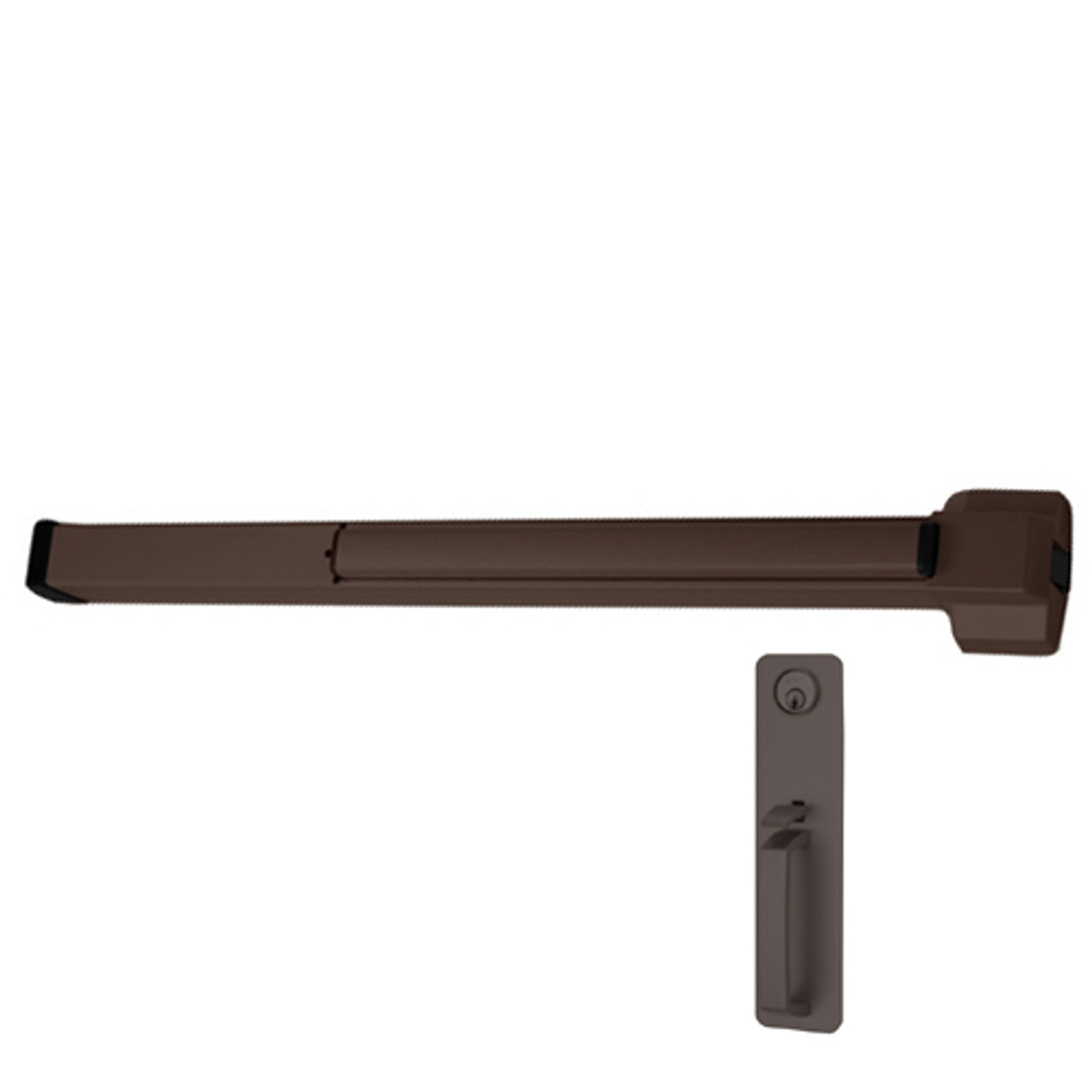

22TP-SP313-4 Von Duprin 22 Series with 230TP Thumbpiece Rim Mounted Exit Device in Duranodic Dark Bronze
The Von Duprin 22TP-SP313-4 is a wide stile pushpad rim exit device built for standard aluminum storefront and glass doors. Thumbpiece Trim — outside thumbpiece depresses to retract the latch. Key locks and unlocks the thumbpiece on keyed functions. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 22 Series pushpad provides a clean, modern activation surface that blends with aluminum storefront framing. Available in 4-foot width to match your door size. Unlike crossbar devices, the pushpad concentrates the push area in the center of the door for a streamlined look. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The 22 is Von Duprin's wide stile pushpad rim device built for standard aluminum storefront doors. Unlike the 55 Series crossbar, the pushpad gives a cleaner look on single doors. If you're between 3-foot and 4-foot — 3-foot fits doors up to 36", 4-foot fits 48". Measure the door, not the frame.
| Specifications | |
|---|---|
| Part Number | 22TP-SP313-4 |
| Function | TP - Thumbpiece |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Door Width | 4-Foot (48") |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Wide stile pushpad design for standard aluminum storefront doors
- Hex key dogging standard — holds latch retracted during business hours
- 4-foot width for wide 48" door openings
- Dark Bronze (SP313/313) sprayed finish — weather resistant
- Non-handed — same device fits LHR and RHR door swings
Works With: Add outside trim separately: 210DT Dummy Pull, 230TP Thumbpiece, or 210K Knob Trim. For pairs of doors, see the 2227 Surface Vertical Rod. For narrow stile doors, see the 55 Series.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
