Product Description
The Sargent 28-11G50-LB-26D is an 11 Line cylindrical lock with Dormitory function in Satin Chrome (US26D/626). Outside lever locked by inside thumbturn, unlocked by key from outside. Inside always free. Grade 1 certified for heavy commercial use.
Ships with a Sargent 6-pin conventional cylinder (LA keyway standard) and two keys.
| SKU Breakdown: 28-11G50-LB-26D | |
| 28 | ANSI curved lip strike (#808) |
| 11G50 | Series and Dormitory function |
| LB | Lever/rose design: LB |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: The 11 Line is Sargent's Grade 1 cylindrical lock, backed by a 10-year factory warranty. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-11G50-LB-26D |
| Function | Dormitory |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Dormitory function for commercial access control
- Satin Chrome (US26D/626) finish
Works With: Compatible with Sargent conventional cylinders.

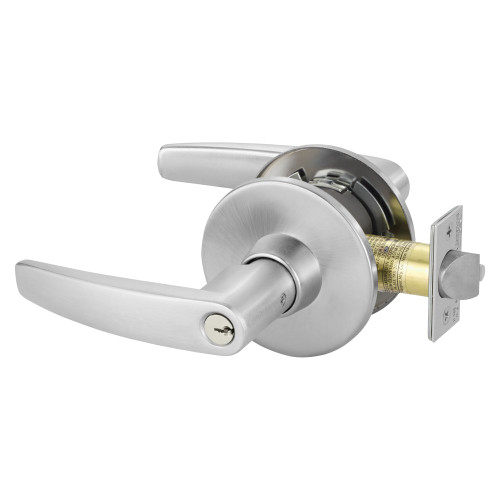

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Dormitory
Series 11
Finish Satin Chrome
Trim L Rose, B Lever
Cylinder Standard Cylinder
Mount Type Cylindrical
