Product Description

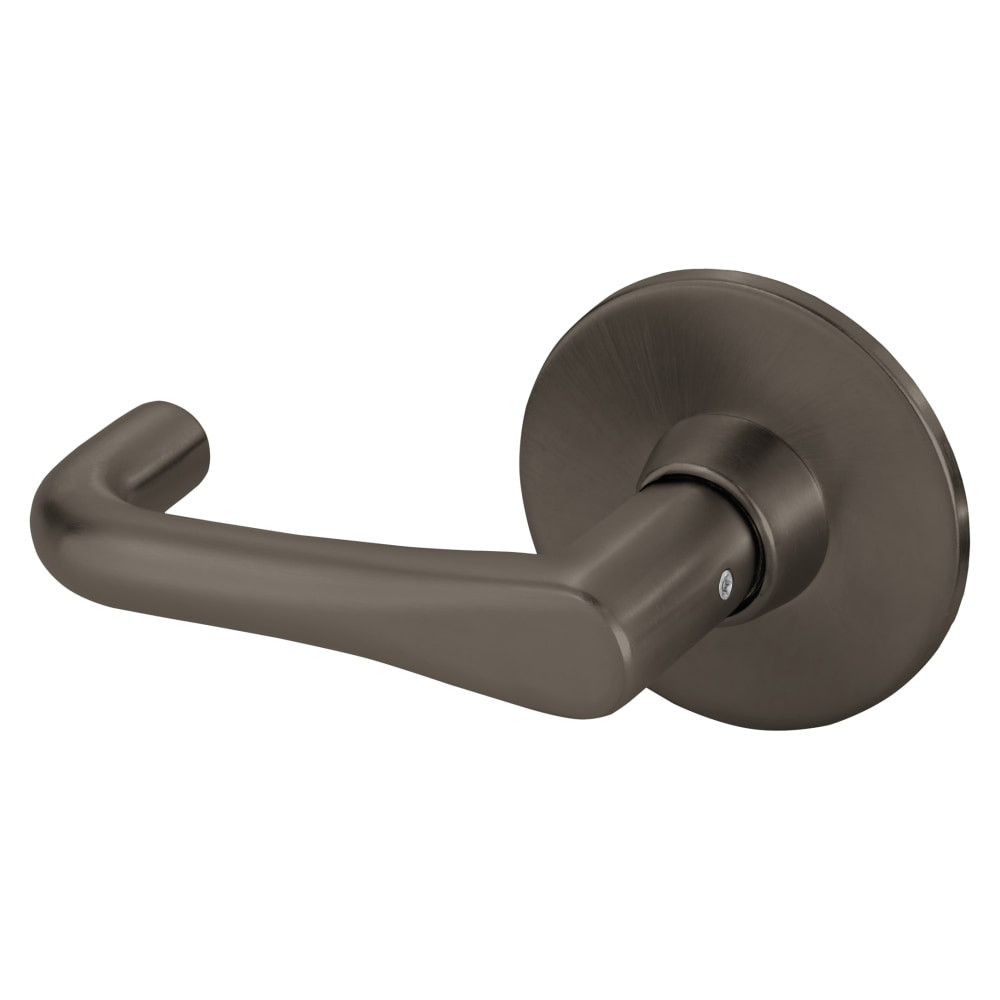

The Sargent 28-11U15-LJ-10B is an 11 Line cylindrical lock with Passage function in Oil Rubbed Bronze (US10B/613). Both levers always unlocked from both sides. No locking mechanism. Grade 1 certified for heavy commercial use.
No cylinder required for this function.
| SKU Breakdown: 28-11U15-LJ-10B | |
| 28 | ANSI curved lip strike (#808) |
| 11U15 | Series and Passage function |
| LJ | Lever/rose design: LJ |
| 10B | Finish: Oil Rubbed Bronze |
Pro-Tip from Our Locksmiths: The 11 Line is Sargent's Grade 1 cylindrical lock, backed by a 10-year factory warranty. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-11U15-LJ-10B |
| Function | Passage |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Passage function for commercial access control
- Oil Rubbed Bronze (US10B/613) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
