Product Description
The Sargent 28-65G05-KP-BSP is a 6500 Series cylindrical lock with Entry/Office function in Black Suede (BSP). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 2 certified (ANSI/BHMA A156.2).
Ships with a Sargent 6-pin conventional cylinder (LA keyway standard) and two keys.
| SKU Breakdown: 28-65G05-KP-BSP | |
| 28 | ANSI curved lip strike (#808) |
| 65G05 | Series and Entry/Office function |
| KP | Lever/rose design: KP |
| BSP | Finish: Black Suede |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-65G05-KP-BSP |
| Function | Entry/Office |
| Finish | Black Suede (BSP) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 2 |
- ANSI/BHMA A156.2 Grade 2 cylindrical lock
- Entry/Office function for commercial access control
- Black Suede (BSP) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.

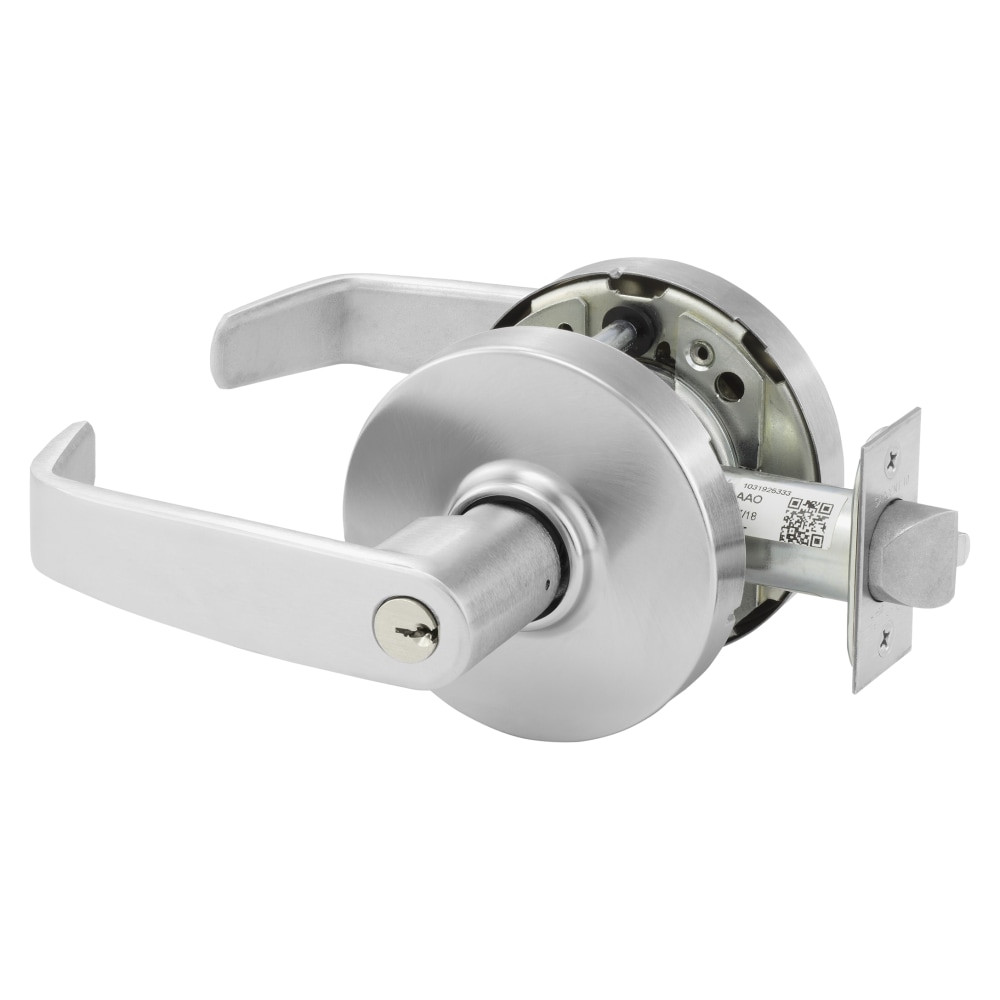

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
