Product Description
Grade 2 cylindrical lock — commercial-grade security in a standard bore install.
The Sargent 28-65G15-3-KB-04 is a Grade 2 cylindrical lock from the 6500 Series with Communicating function.
| SKU Breakdown: 28-65G15-3-KB-04 | |
| 28 | ANSI curved lip strike (#808) |
| 65G15 | Series and Communicating function |
| 3 | Lever/rose design: 3 |
| KB | Finish: Satin Brass |
| 04 | Configuration modifier |
This unit comes with B Lever in Satin Brass — the 04 finish making a huge comeback in commercial design. Popular on boutique hotels, upscale office buildings, and any project where the architect wants warm tones. Cylindrical locks install in a standard 2-1/8" bore hole — no mortise pocket required. Fastest commercial lock to install.
Pro-Tip from Our Locksmiths: Cylindrical locks install in a standard 2-1/8" bore — no mortise pocket needed. That means faster install, lower labor cost, and an easier retrofit when replacing existing hardware. The through-bolt construction on Sargent's 10X Line gives you pull strength that rivals some mortise locks.
| Certification | ANSI A156.2, BHMA Grade 2 |
| Backset | 2-3/4" |
- ANSI/BHMA Grade 2 — Sargent lists the 6500 Series as its Grade 2 lever lock
- Standard 2-1/8" bore — fast install, no mortise pocket needed
- Through-bolt mounting for maximum resistance to lever torque attacks
- Satin Brass finish
- Field reversible — works on any swing direction

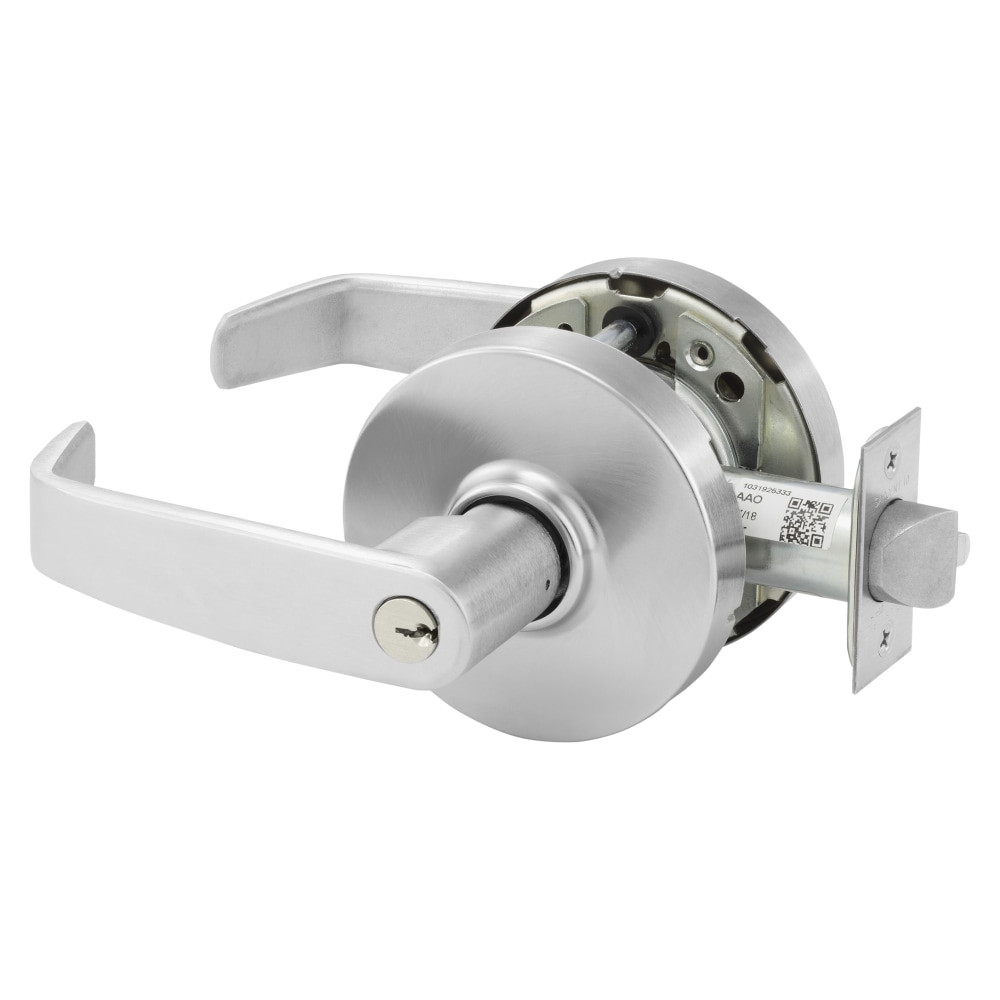

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 1-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Communicating
Series 6500
Finish Satin Brass
Trim B Lever
Cylinder No cylinder required for this function
Mount Type Cylindrical
