Product Description

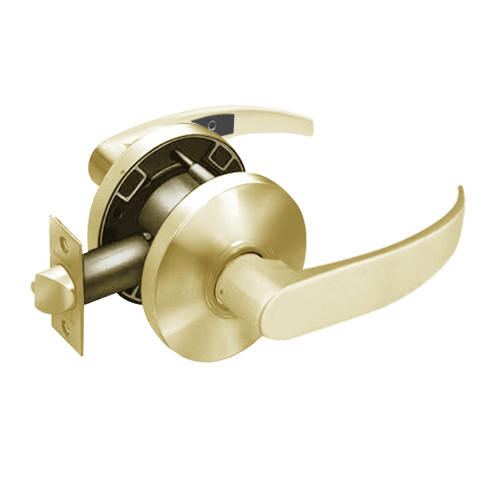

The Sargent 28-65U65-KP-04 is a 6500 cylindrical lock with Privacy function in Satin Brass (US4/606). Inside thumbturn locks the outside lever. Emergency key override from outside. Inside always free. Grade 2 certified (ANSI/BHMA A156.2).
No cylinder required for this function.
| SKU Breakdown: 28-65U65-KP-04 | |
| 28 | ANSI curved lip strike (#808) |
| 65U65 | Series and Privacy function |
| KP | Trim: P Lever |
| 04 | Finish: Satin Brass |
Pro-Tip from Our Locksmiths: The 6500 Series is Sargent's ANSI Grade 2 cylindrical lever lock. If you need a standard-duty commercial lever without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-65U65-KP-04 |
| Series | Sargent 6500 |
| Function | Privacy |
| Trim / Lever | P Lever |
| Finish | Satin Brass (US4/606) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA Grade 2 |
- ANSI/BHMA A156.2 Grade 2 cylindrical lock
- Privacy function for commercial access control
- Satin Brass (US4/606) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
