Product Description

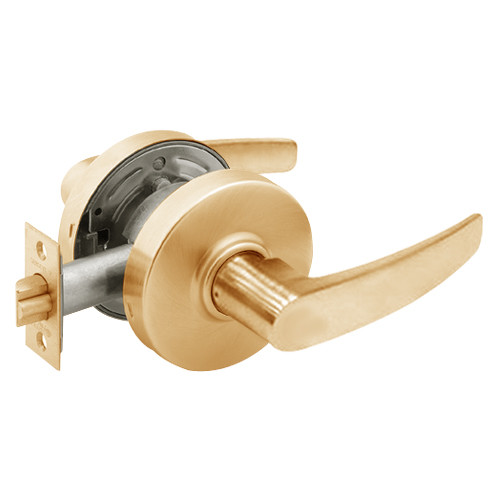

The Sargent 28-7U15-LB-10 is a 7 Line cylindrical lock with Passage function in Satin Bronze (US10/612). Both levers always unlocked from both sides. No locking mechanism. Grade 2 certified for standard-duty commercial use.
No cylinder required for this function.
| SKU Breakdown: 28-7U15-LB-10 | |
| 28 | 808 ANSI strike |
| 7U15 | Series and Passage function |
| LB | Trim: B Lever |
| 10 | Finish: Satin Bronze |
Pro-Tip from Our Locksmiths: The 7 Line is Sargent's Grade 2 cylindrical lock, tested to 2-1/2 times the Grade 2 cycle requirement. It suits standard-duty offices and interior doors without mortise lock pricing.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-7U15-LB-10 |
| Function | Passage |
| Trim / Lever | B Lever |
| Finish | Satin Bronze (US10/612) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Passage function for commercial access control
- Satin Bronze (US10/612) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
