Product Description

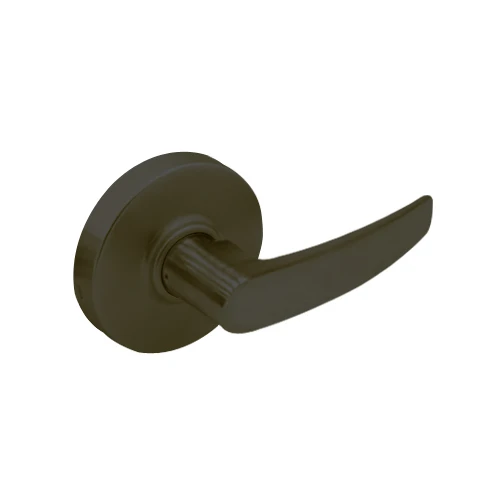

The Sargent 28-7U94-LB-10B is a 7 Line cylindrical lock with function in Oil Rubbed Bronze (US10B/613). Grade 2 certified for standard-duty commercial use.
Ships with a Sargent 6-pin conventional cylinder (LA keyway standard) and two keys.
| SKU Breakdown: 28-7U94-LB-10B | |
| 28 | 808 ANSI strike |
| 7U94 | Series and function code |
| LB | Trim: B Lever |
| 10B | Finish: Oil Rubbed Bronze |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-7U94-LB-10B |
| Trim / Lever | B Lever |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Oil Rubbed Bronze (US10B/613) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.

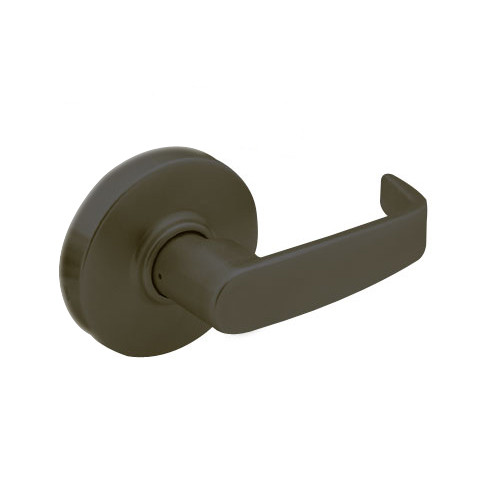

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 7-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Finish Oil Rubbed Bronze
Trim Lever
Mount Type Cylindrical
Series 7
