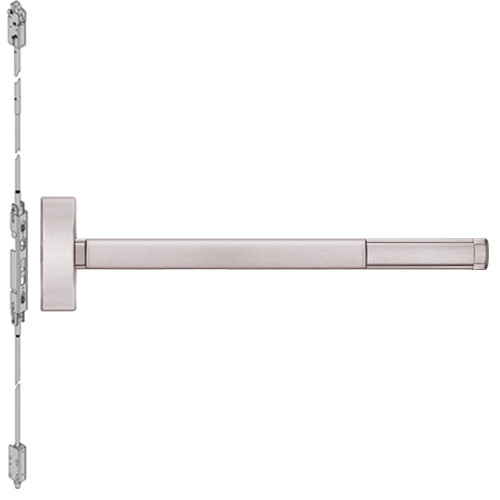

2808CD-628-36 PHI 2800 Series Non Fire Rated Concealed Vertical Rod Exit Device Prepped for Key Controls Lever-Knob in Satin Aluminum Finish
This device is for a 36" door
The PHI 2808CD-628-36 Apex 2000 series exit device is used for all types of metal single and double doors and represents the ultimate in safety, security and simplicity. The APEX 2000 series provides smoother operation with minimal need for maintenance and durable construction allows it to withstand high traffic and high use on a regular basis, making it particularly attractive for healthcare and education buildings. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation. The Apex 2800 Series exit devices are UL listed for panic hardware and is certified to ANSI A156.3 Grade 1.
Features and Benefits:
- Satin Aluminum finish
- Handing: Non handed
- UL listed
- Non fire rated
- Door Size: 36" - 2'-7" to 3' door width
- Cylinder and trim is not included
- Prepped for key controls lever/knob
- Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.
- Bottom Bolt: Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
- Strike: Top - S519 Surface applied; Bottom - S460, Flush mounted
- Dogging: Cylinder dogging is included
- Used for the wide stile door
- Touchbar height: 39-15/16"- from floor standard
- Vertical Rod: Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0"
