Product Description
The Sargent 2860-10G30-GL-03 is a 10 line cylindrical lock with Communicating function in Bright Brass (US3/605). Both levers can be locked and unlocked independently by key. For connecting rooms. Grade 1 certified for heavy commercial use.
Ships prepped for a Sargent Large Format Interchangeable Core (LFIC) with a plastic disposable construction core (60- option) — the permanent LFIC core is not included. Order your LFIC core separately to match your building’s keyway; it snaps into the housing with a control key, so you can rekey later without pulling the lock.
| SKU Breakdown: 2860-10G30-GL-03 | |
| 2860 | ANSI curved lip strike (#808) + Sargent LFIC prep, ships with disposable plastic construction core |
| 10G30 | Series and Communicating function |
| GL | Trim: L Lever |
| 03 | Finish: Bright Brass |
Pro-Tip from Our Locksmiths: The 10 Line is Sargent's workhorse cylindrical lock. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 2860-10G30-GL-03 |
| Series | Sargent 10 line |
| Function | Communicating |
| Trim / Lever | L Lever |
| Finish | Bright Brass (US3/605) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Communicating function for commercial access control
- Bright Brass (US3/605) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Free Expert Support — As an authorized Sargent distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

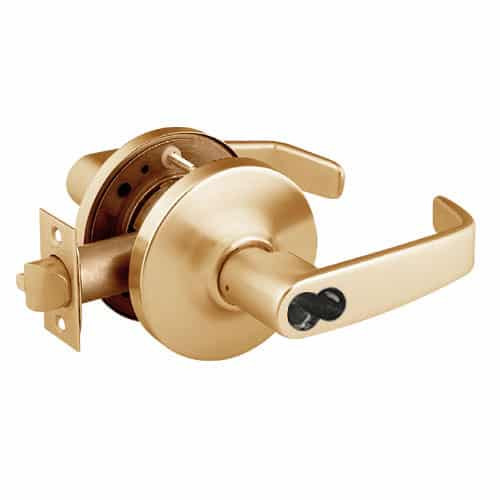

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
