Product Description

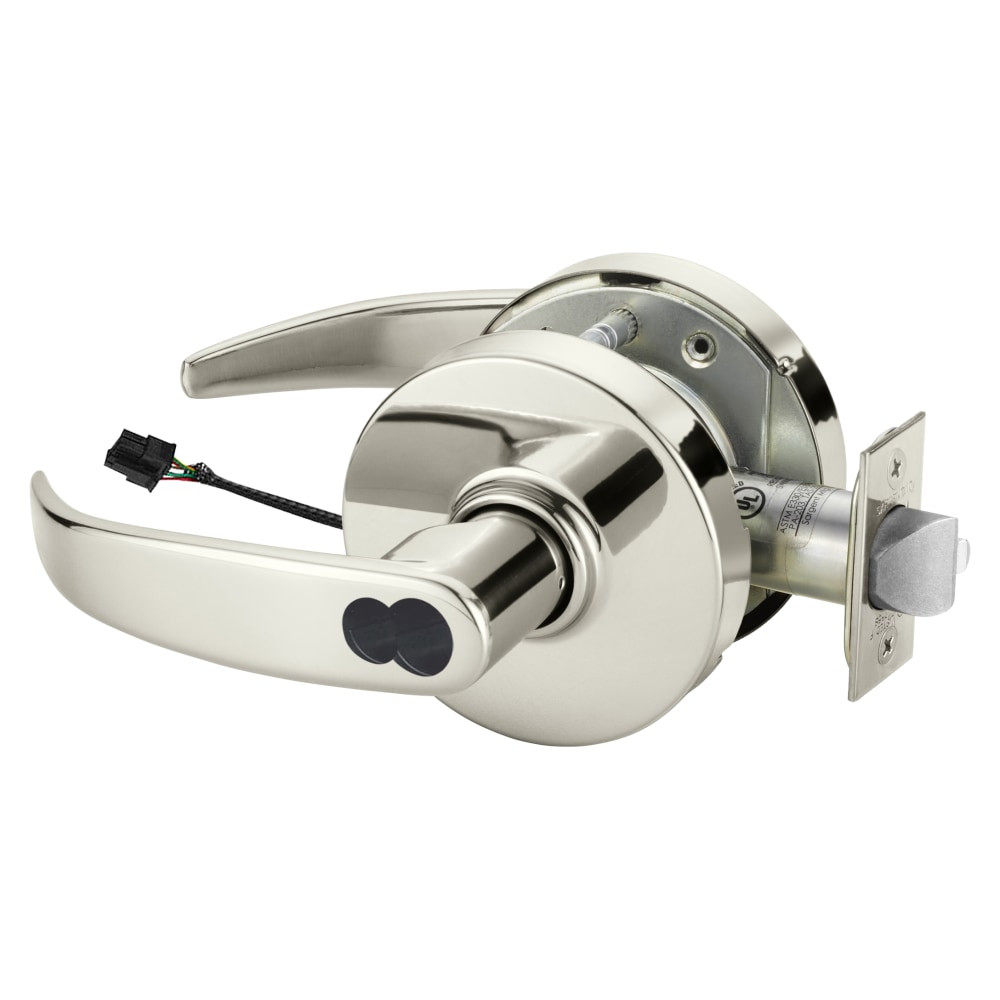

The Sargent 2860-10G71-12V-LP-14 is a 10 Line cylindrical lock with Fail Secure function in Bright Nickel (US14/618). Remains locked on power loss. Key override always available. Grade 1 certified for heavy commercial use.
Ships prepped for a Sargent Large Format Interchangeable Core (LFIC) with a plastic disposable construction core (60- option) — the permanent LFIC core is not included. Order your LFIC core separately to match your building’s keyway; it snaps into the housing with a control key, so you can rekey later without pulling the lock.
| SKU Breakdown: 2860-10G71-12V-LP-14 | |
| 2860 | ANSI curved lip strike (#808) + Sargent LFIC prep, ships with disposable plastic construction core |
| 10G71 | Series and Fail Secure function |
| 12V | Voltage: 12VDC, regulated |
| LP | Rose and lever: L rose, P lever |
| 14 | Finish: Bright Nickel |
Pro-Tip from Our Locksmiths: Sargent cylindrical locks are a solid mid-range choice for commercial jobs where mortise prep isn't in the budget. Grade 1 certified with a clean, professional look.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 2860-10G71-12V-LP-14 |
| Function | Fail Secure |
| Finish | Bright Nickel (US14/618) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Fail Secure function for commercial access control
- Bright Nickel (US14/618) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
