Product Description
The Sargent 2860-7G05-LB-10B is a 7 Line cylindrical lock with Entry/Office function in Oil Rubbed Bronze (US10B/613). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 2 certified for standard-duty commercial use.
Ships prepped for a Sargent Large Format Interchangeable Core (LFIC) with a plastic disposable construction core (60- option) — the permanent LFIC core is not included. Order your LFIC core separately to match your building’s keyway; it snaps into the housing with a control key, so you can rekey later without pulling the lock.
| SKU Breakdown: 2860-7G05-LB-10B | |
| 2860 | 28 = 808 ANSI strike; 60 = accepts Sargent LFIC removable core (disposable plastic core provided) |
| 7G05 | Series and Entry/Office function |
| LB | Trim: B Lever |
| 10B | Finish: Oil Rubbed Bronze |
Pro-Tip from Our Locksmiths: The 7 Line is Sargent's Grade 2 cylindrical lock, tested to 2-1/2 times the Grade 2 cycle requirement. It suits standard-duty offices and interior doors without mortise lock pricing.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 2860-7G05-LB-10B |
| Function | Entry/Office |
| Trim / Lever | B Lever |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Entry/Office function for commercial access control
- Oil Rubbed Bronze (US10B/613) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

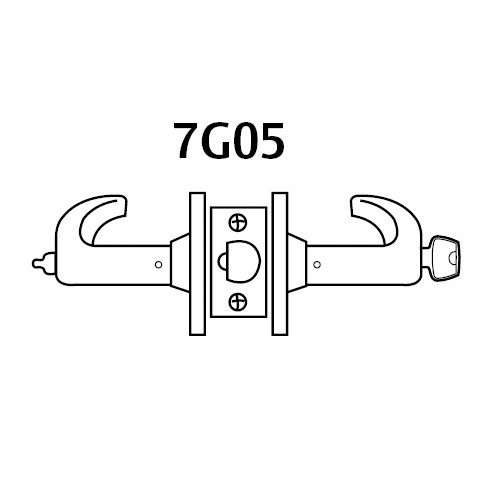

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
